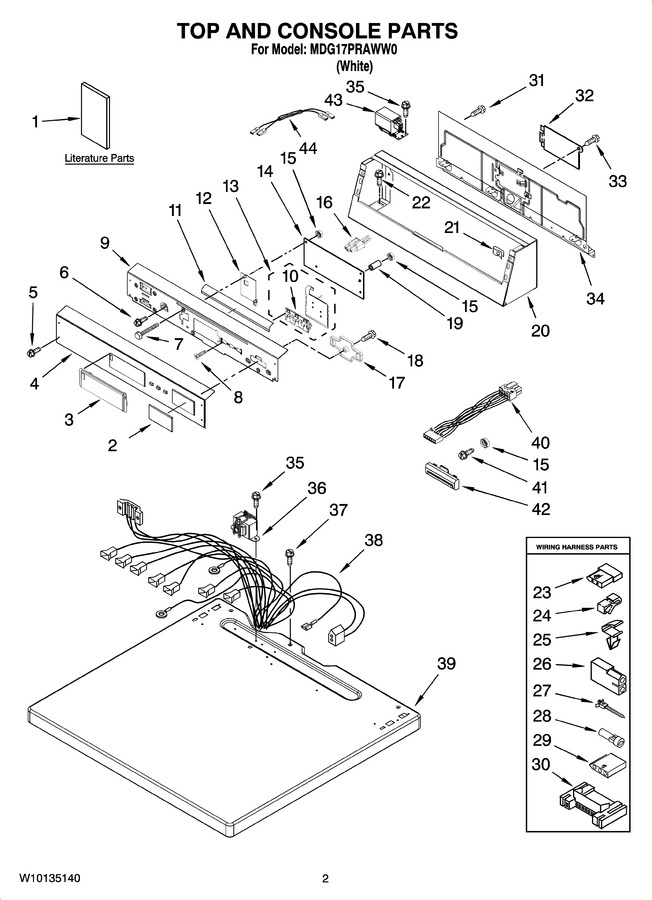

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - W10135231 Burner Assembly, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10135140 | Repair Parts List |
|
- | |||||
| 1 | W10135291 | Card Reader Installation Instructions |
|
- | |||||
| 1 | W10183571 | Tech Sheet |
|
- | |||||
| 1 | W10143804 | Wiring Diagram |
|
- | |||||
| 1 | W10135130 | Installation Instructions |
|
- | |||||
| 2 | W11164066 | Cover, Card Reader (Replaces: W10137769) |
|
- | |||||
| 3 | WPW10131114 | Cover, Display (Replaces: W10131114) |
|
$ 42.79 | |||||
| 4 | W10135182 | Facia / Overlay |
|
- | |||||
| 5 | WPW10131119 | Screw, 8-18 X 1/2 (Replaces: W10131119) |
|
$ 6.26 | |||||
| 6 | WP489128 | Screw, 8-32 X 3/8 (Replaces: W10142728) |
|
$ 9.79 | |||||
| 7 | W11117300 | Screw, 6-20 X 1.00 (Replaces: W10137322) |
|
- | |||||
| 8 | W10756178 | Screw, 6-20 X 1/2 (Replaces: W10140652) |
|
$ 5.39 | |||||
| 9 | W10124215 | Bracket, Control |
|
- | |||||
| 10 | WPW10424308 | Push Button (Replaces: W10131113) |
|
Immediately | $ 18.38 | ||||
| 11 | W10133515 | Deflector |
|
- | |||||
| 12 | W10161476 | Shield, Probing |
|
$ 70.65 | |||||
| 13 | WPW10135233 | Push Button & Switch Assembly (Replaces: W10135233) |
|
$ 168.34 | |||||
| 14 | WPW10130081 | Control Board (Replaces: W10130081) |
|
$ 277.17 | |||||
| 15 | WPW10139046 | Nut, 6-32 (Replaces: W10139046) |
|
$ 7.91 | |||||
| 16 | W11129439 | Jumper, Service Vault Switch (Replaces: W10133282) |
|
$ 15.14 | |||||
| 17 | W11775266 | Retainer, Card (Replaces: W10137770) |
|
- | |||||
| 18 | 3400618 | Screw, 6-19 X 3/8 |
|
$ 58.23 | |||||
| 19 | W11117166 | Spacer (Replaces: W10133514) |
|
- | |||||
| 20 | W10207168 | Console (Replaces: W10137300) |
|
- | |||||
| 21 | WPW10131123 | Nut, 8 U-type (Replaces: W10131123) |
|
$ 6.94 | |||||
| 22 | WPW10139210 | Screw, 8-18 X 5/16 (Replaces: W10139210) |
|
$ 6.75 | |||||
| 23 | 717253 | Receptacle (2-way) |
|
- | |||||
| 24 | W10113937 | Clip, Ground (Replaces: 357572) |
|
$ 9.75 | |||||
| 25 | WP3394427 | Clip, Harness (Replaces: 3394427) |
|
$ 7.01 | |||||
| 26 | 717252 | Receptacle, 2 Way |
|
- | |||||
| 27 | WP3391018 | Tie, Cable (Replaces: 3391018) |
|
$ 28.66 | |||||
| 28 | 351297 | Plug, Harness |
|
- | |||||
| 29 | 3936144 | Connector (3-circuit) |
|
$ 18.19 | |||||
| 30 | 3395683 | Housing Connector |
|
Immediately | $ 46.67 | ||||
| 31 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 7.01 | ||||
| 32 | W10819767 | Cover, Terminal Block (Replaces: 8317340) |
|
- | |||||
| 33 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 3390814) |
|
Immediately | $ 7.04 | ||||
| 34 | W10177312 | Panel, Rear (upper) |
|
- | |||||
| 35 | WP90767 | Screw,8-18 X 5/16 (Replaces: 8533971) |
|
Immediately | $ 7.04 | ||||
| 36 | WPW10131839 | Transformer 120 To 22.5 Vac. (Replaces: W10131839) |
|
Immediately | $ 120.20 | ||||
| 37 | W11676450 | Screw, 10-24 X 3/8 (Replaces: 3400000) |
|
$ 12.65 | |||||
| 38 | W10130190 | Harness, Main |
|
Immediately | $ 281.21 | ||||
| 39 | WPW10136704 | Top (Replaces: W10136704) |
|
$ 234.39 | |||||
| 40 | W10858740 | Harness, Card Reader (Replaces: W10133304) |
|
$ 21.56 | |||||
| 41 | WPW10143462 | Screw, 6-32 X 9/16 (Replaces: W10143462) |
|
$ 5.40 | |||||
| 42 | WPW10131115 | Bezel (Replaces: W10131115) |
|
$ 7.63 | |||||
| 43 | WPW10367632 | Rfi Filter (Replaces: 8540229) |
|
$ 110.00 | |||||
| 44 | W10175650 | Jumper-line Filter |
|
- |
