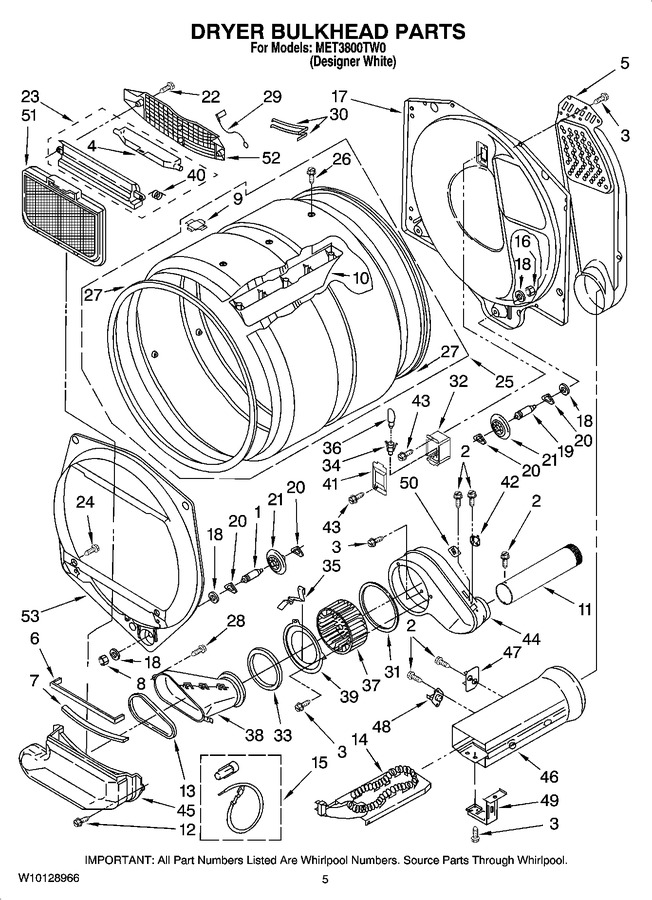

| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
WPW10359271 |
 |
Shaft, Roller (Replaces: 8575324) |
|
|
Immediately |
$ 55.99 |
|
|
| 2 |
WP90767 |
 |
Screw, 8-18 X 3/8 (Replaces: 90767) |
|
|
Immediately |
$ 7.04 |
|
|
| 3 |
WP681414 |
 |
Screw,10-16 X 1/2 (Replaces: 343641) |
|
|
Immediately |
$ 7.07 |
|
|
| 4 |
W11222846 |
 |
Door, Lint Screen (Replaces: 3394984) |
|
|
Immediately |
$ 183.35 |
|
|
| 5 |
WP3387911 |
 |
Air Duct Assembly (Replaces: 697354) |
|
|
|
$ 280.55 |
|
|
| 6 |
WP697813 |
 |
Seal, Outlet Housing (Replaces: 697813) |
|
|
Immediately |
$ 7.17 |
|
|
| 7 |
WP3391906 |
|
Seal, Lint Duct (Replaces: 3391906) |
|
|
|
$ 7.73 |
|
|
| 8 |
W11812294 |
|
Nut (2) (Replaces: 3934666) |
|
|
|
$ 10.94 |
|
|
| 9 |
8066086 |
|
Drum, Hole Plug |
|
|
|
$ 9.68 |
|
|
| 10 |
279982 |
 |
Baffle, Drum (3) (Replaces: 3389449) |
|
|
|
$ 212.75 |
|
|
| 11 |
WP8563748 |
|
Pipe, Exhaust (Replaces: 8563748) |
|
|
|
$ 11.61 |
|
|
| 12 |
WP488729 |
 |
Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
|
Immediately |
$ 7.01 |
|
|
| 13 |
WP697770 |
 |
Seal, Transition Duct To Lint Duct (Replaces: 3391685) |
|
|
Immediately |
$ 7.09 |
|
|
| 14 |
WP3387749 |
 |
Element, Heater (Replaces: 3387749) |
|
|
Immediately |
$ 281.64 |
|
|
| 15 |
279457 |
 |
Terminal Wire Kit (for Heater Element Wiring Harness Repair) |
|
|
Immediately |
$ 7.13 |
|
|
| 16 |
WPW10080190 |
 |
Nut, Hex (2) (Replaces: W10001120) |
|
|
Immediately |
$ 7.64 |
|
|
| 17 |
W11299301 |
 |
Bulkhead, Rear (Replaces: 8520836) |
|
|
|
$ 222.98 |
|
|
| 18 |
W11236646 |
 |
Washer, Support (Replaces: 3387459) |
|
|
Immediately |
$ 12.63 |
|
|
| 19 |
WPW10359272 |
 |
Shaft, L.h. Thread (Replaces: 8575325) |
|
|
Immediately |
$ 52.63 |
|
|
| 20 |
WPW10512946 |
 |
Tri-ring (Replaces: 690997) |
|
|
Immediately |
$ 7.92 |
|
|
| 21 |
WPW10314173 |
 |
Support, Roller (Replaces: 8536973) |
|
|
Immediately |
$ 25.65 |
|
|
| 22 |
WP308685 |
 |
Screw,10-16 X 1/2 (Replaces: 3357011) |
|
|
Immediately |
$ 7.08 |
|
|
| 23 |
W11129408 |
 |
Housing,outlet (Replaces: 3394985) |
|
|
|
$ 47.95 |
|
|
| 24 |
WP488729 |
|
Screw, 8-18 X 1/2 (Replaces: 695240) |
|
|
Immediately |
$ 7.01 |
|
|
| 25 |
W10518375 |
 |
Assembly, Drum (Replaces: 3389448) |
|
|
|
$ 401.47 |
|
|
| 26 |
WPW10109200 |
 |
Screw, 11-16 X 3/4 (Replaces: W10109200) |
|
|
Immediately |
$ 7.20 |
|
|
| 27 |
280114 |
 |
Seal, Drum (Replaces: 697694) |
|
|
Immediately |
$ 63.74 |
|
|
| 28 |
WP3387230 |
 |
Screw, 10-16 X 13/16 (Replaces: 3387230) |
|
|
Immediately |
$ 7.69 |
|
|
| 29 |
3392258 |
|
Wire, Ground (sensor) |
|
Appelez-nous
|
- |
|
|
|
| 30 |
WP3387223 |
 |
Electrode, Sensor (Replaces: 3387223) |
|
|
Immediately |
$ 5.55 |
|
|
| 31 |
WP697770 |
|
Seal, Cover Plate (Replaces: 697770) |
|
|
Immediately |
$ 7.09 |
|
|
| 32 |
3977373 |
|
Bracket, Light |
|
|
|
$ 95.21 |
|
|
| 33 |
WP8566209 |
 |
Seal, Transition Duct (Replaces: 8566209) |
|
|
|
$ 49.91 |
|
|
| 34 |
W11700522 |
 |
Socket Assembly (Replaces: 3403634) |
|
|
|
$ 65.84 |
|
|
| 35 |
3390935 |
|
Clip, Duct Locator |
|
|
|
$ 11.48 |
|
|
| 36 |
WP22002263 |
 |
Light Bulb (Replaces: 3406124) |
|
|
Immediately |
$ 12.29 |
|
|
| 37 |
WP697772 |
 |
Wheel, Blower (Replaces: 697772) |
|
|
Immediately |
$ 53.16 |
|
|
| 38 |
279704 |
 |
Duct, Transition (includes Illus. No.33) (Replaces: 3389445) |
|
|
|
$ 160.18 |
|
|
| 39 |
279780 |
|
Plate, Blower (Replaces: 697366) |
|
|
|
$ 83.66 |
|
|
| 40 |
WP3394986 |
 |
Spring, Lint Screen Door (Replaces: 3394986) |
|
|
|
$ 76.13 |
|
|
| 41 |
W11226088 |
 |
Lens, Drum Light (Replaces: 3402841) |
|
|
|
$ 27.98 |
|
|
| 42 |
WP3387134 |
 |
Thermostat, Internal Bias (Replaces: 3387134) |
|
|
Immediately |
$ 32.31 |
|
|
| 43 |
WP488729 |
|
Screw, 8-15 X 1/2 (Replaces: 487909) |
|
|
Immediately |
$ 7.01 |
|
|
| 44 |
WP8544363 |
 |
Housing, Blower (Replaces: 8544363) |
|
|
|
$ 137.37 |
|
|
| 45 |
279700 |
 |
Lint Duct Assembly (includes Illus. 7 & 13) (Replaces: 3388909) |
|
|
|
$ 163.06 |
|
|
| 46 |
W10802681 |
 |
Heater Box (Replaces: 697715) |
|
|
Immediately |
$ 116.70 |
|
|
| 47 |
279769 |
 |
Thermal Cut-off (includes Illus. 48) (Replaces: 3977394) |
|
|
Immediately |
$ 56.57 |
|
|
| 48 |
WP3390291 |
 |
Thermostat, High Limit 250~f (121.1~c) (60 Hz.) (Replaces: 3390291) |
|
|
Immediately |
$ 85.45 |
|
|
| 49 |
3389648 |
|
Bracket, Heater Mounting (Replaces: 3389647) |
|
Appelez-nous
|
- |
|
|
|
| 50 |
WP3403607 |
 |
Limiter, Thermal (Replaces: 3403607) |
|
|
Immediately |
$ 40.22 |
|
|
| 51 |
WP3389644 |
 |
Screen, Lint (Replaces: 3389644) |
|
|
Immediately |
$ 82.04 |
|
|
| 52 |
W11086603 |
 |
Grille, Outlet (Replaces: 8299979) |
|
|
Immediately |
$ 31.63 |
|
|
| 53 |
WP697557 |
|
Bulkhead, Front (Replaces: 697557) |
|
|
|
$ 187.23 |
|
|
