01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Manifold Parts
05 - Door Parts

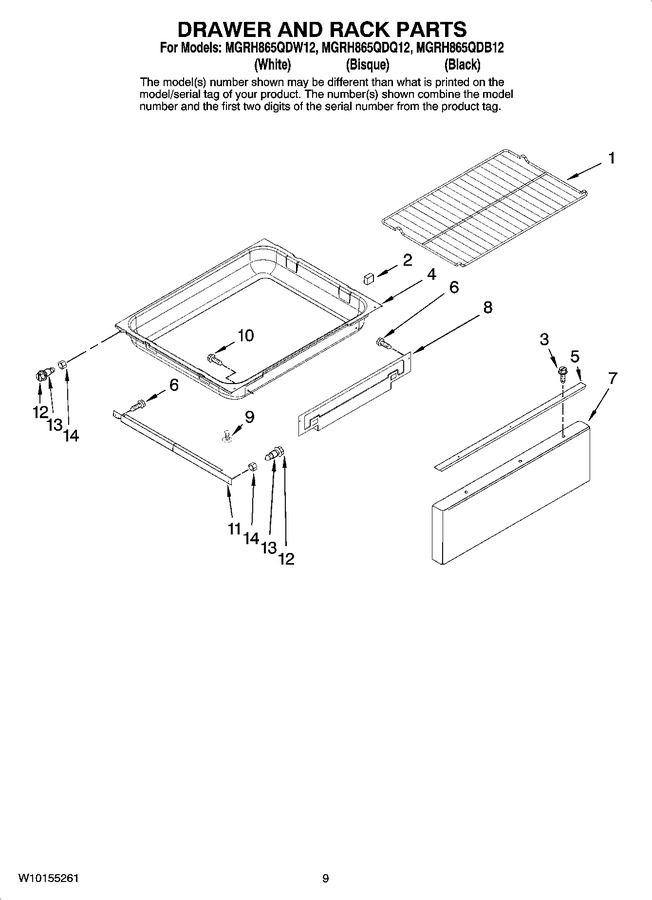

06 - Drawer And Rack Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP74008763 | Rack, Oven (2) (Replaces: 74008763) |
|
$ 192.14 | |||||
| 2 | WP74005546 | Spacer, Bumper (Replaces: 74005546) |
|
$ 9.48 | |||||
| 3 | W11233072 | Screw (Replaces: 74009268) |
|
Immediately | $ 12.62 | ||||
| 4 | WP3405F037-80 | Drawer (Replaces: 74008877) |
|
$ 304.98 | |||||
| 5 | 5171P936-60 | Handle, Drawer (Replaces: 74008908) |
|
$ 203.04 | |||||
| 6 | W11233072 | Screw (Replaces: 74001530) |
|
Immediately | $ 12.62 | ||||
| 7 | 74009035 | Panel, Drawer Front (black) |
|
- | |||||
| 7 | 74008857 | Panel, Drawer Front (bisque) |
|
- | |||||
| 7 | 74008856 | Panel, Drawer Front (white) |
|
- | |||||
| 8 | 74009519 | Panel, Inner |
|
- | |||||
| 9 | 74008688 | Drawer, Stop |
|
$ 5.02 | |||||
| 10 | WP7101P072-60 | Screw (Replaces: 7101P072-60) |
|
$ 6.77 | |||||
| 11 | 74008687 | Rail, Drawer |
|
- | |||||
| 12 | 74005231 | Shaft, Storage Drawer Roller |
|
$ 9.23 | |||||
| 13 | WP74004078 | Roller, Drawer (Replaces: 74004078) |
|
Immediately | $ 10.70 | ||||
| 14 | WP488130 | Nut (Replaces: 7103P082-60) |
|
$ 6.27 | |||||
| 8019P013-60 | Clip, Wire (Replaces: 74006811) |
|
$ 13.46 | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | |||||
| 285006 | Paint, Pressurized Spray 12 Oz.) (superior Black) |
|
Immediately | $ 51.34 | |||||
| 350942 | Paint, Pressurized Spray (12 Oz.) (primer, White) (Replaces: 206922) |
|
$ 80.69 | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 4392900 | Paint, Bulk (1 Qt.) (biscuit) (uncut) |
|
- | ||||||
| 799340 | Paint, Bulk (1 Qt.) (black (uncut)) |
|
- | ||||||
| 241430 | Foil, Aluminum Oven (18`` X 25`) |
|
$ 20.65 | ||||||
| 8019P026-60 | Clip, Harness (Replaces: 74006784) |
|
- | ||||||
| WP4159193 | Screw, Ground (Replaces: 7101P027-60) |
|
$ 4.29 | ||||||
| 4392901 | Paint, Pressurized Spray (12oz.) (biscuit) |
|
- | ||||||
| 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | |||||
| 242828 | Wire (12 Ga. 150 C Black) |
|
- | ||||||
| 242821 | Wire (14 Ga. 150 C Blue) |
|
- | ||||||
| 242822 | Wire (14 Ga. 150 C Brown) |
|
- | ||||||
| 242830 | Wire (14 Ga. 200 C Brown) |
|
- | ||||||
| 242823 | Wire (14 Ga. 150 C Green) |
|
- | ||||||
| 242824 | Wire (14 Ga. 150 C Orange) |
|
- | ||||||
| 242825 | Wire (14 Ga. 150 C Red) |
|
- | ||||||
| 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | ||||||
| 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | ||||||
| 799832 | Kit. Porcelain Repair (white) |
|
- | ||||||
| W10129628 | Harness, Gas |
|
- | ||||||
| 8212471 | Touch-up Self-clean(1/2 Pt) (Replaces: 242756) |
|
Immediately | $ 74.76 | |||||
| 261582 | Grease |
|
- | ||||||
| WPW10208653 | Insulation, Fiberglass (1-1/2`` X 24`` X 120``) (Replaces: 261514) |
|
Immediately | $ 49.92 | |||||
| WPW10208653 | Insulation, Fiberglass (2-1/2`` X 22`` X 120``) (Replaces: 240132) |
|
Immediately | $ 49.92 | |||||
| 4392899 | Paint, Touch-up (1/2oz.) (biscuit) |
|
Immediately | $ 23.81 | |||||
| 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 44.36 | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 34.39 | |||||
| 285006 | Paint, Pressurized Spray (12 Oz.) (black) (Replaces: 350939) |
|
Immediately | $ 51.34 |
