SELECT A DIAGRAM

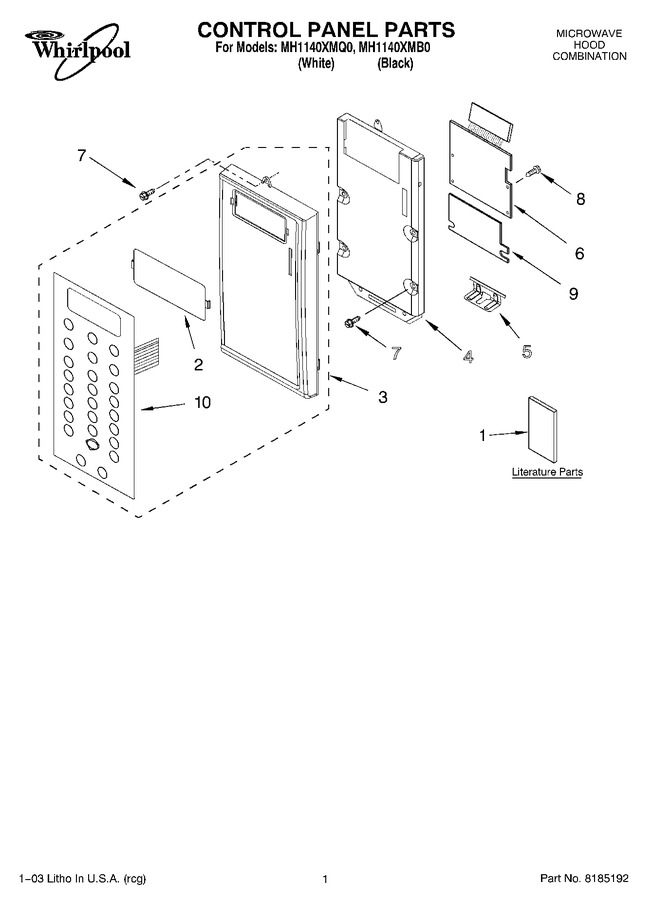

01 - Control Panel Parts
02 - Door Parts
03 - Interior And Ventilation Parts
04 - Air Flow Parts
05 - Magnetron And Turntable Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT8184979 | Literature Parts (use & Care Guide) |
|
- | |||||
| 1 | LIT8184732 | Literature Parts (installation Instructions) |
|
- | |||||
| 1 | LIT8184995 | Literature Parts (tech Sheet) |
|
- | |||||
| 1 | LIT8184988 | Literature Parts (cook Guide Label) |
|
- | |||||
| 2 | 4393739 | Lens |
|
- | |||||
| 3 | 8185236 | Panel, Control (black) |
|
- | |||||
| 3 | 8185235 | Panel, Control (white) |
|
- | |||||
| 4 | 8183821 | Bracket, Control |
|
- | |||||
| 5 | 4393744 | Plate, Hinge |
|
- | |||||
| 6 | 8185237 | Pcb Assembly |
|
- | |||||
| 7 | 4393828 | Screw |
|
- | |||||
| 8 | 4393346 | Screw |
|
- | |||||
| 9 | 8185122 | Foil, Pcb |
|
- | |||||
| 10 | 8185241 | Switch, Membrane (black) |
|
- | |||||
| 10 | 8185240 | Switch, Membrane (white) |
|
- |
