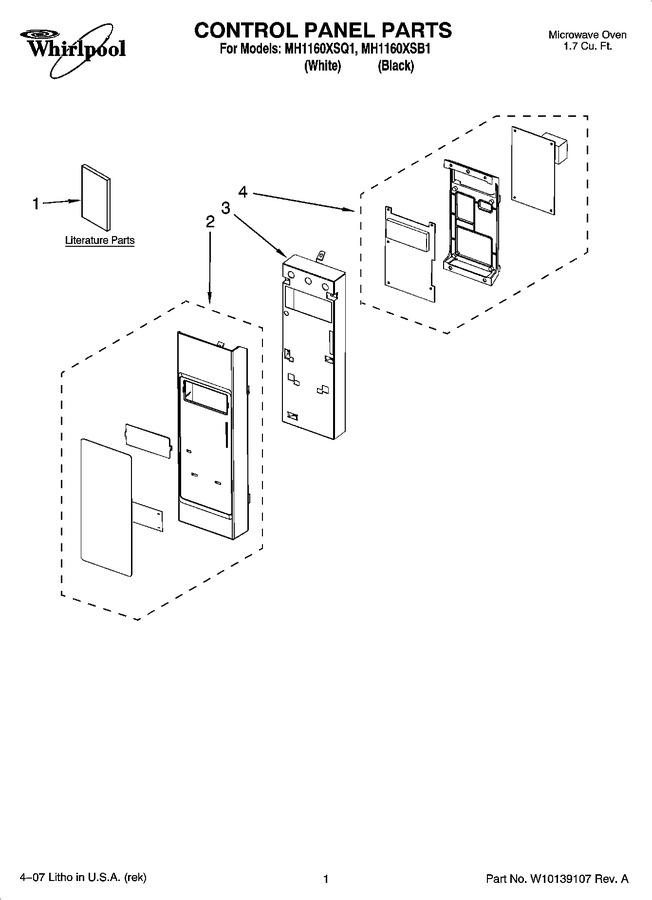

01 - Control Panel Parts
02 - Door Parts
03 - Interior And Ventilation Parts
04 - Air Flow Parts
05 - Turntable Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10110881 | Literature (u & C Guide) |
|
- | |||||
| 1 | W10110888 | Literature (tech Sheet) |
|
- | |||||
| 1 | 8205879 | Cook Guide Label |
|
- | |||||
| 2 | 8206422 | Panel Asy, Control Includes Lens And Membrane Switch (white) |
|
- | |||||
| 2 | 8206423 | Panel Asy, Control Includes Lens And Membrane Switch (black) |
|
- | |||||
| 3 | 8206361 | Bracket, Control |
|
- | |||||
| 4 | W10108790 | Microcomputer |
|
- |
