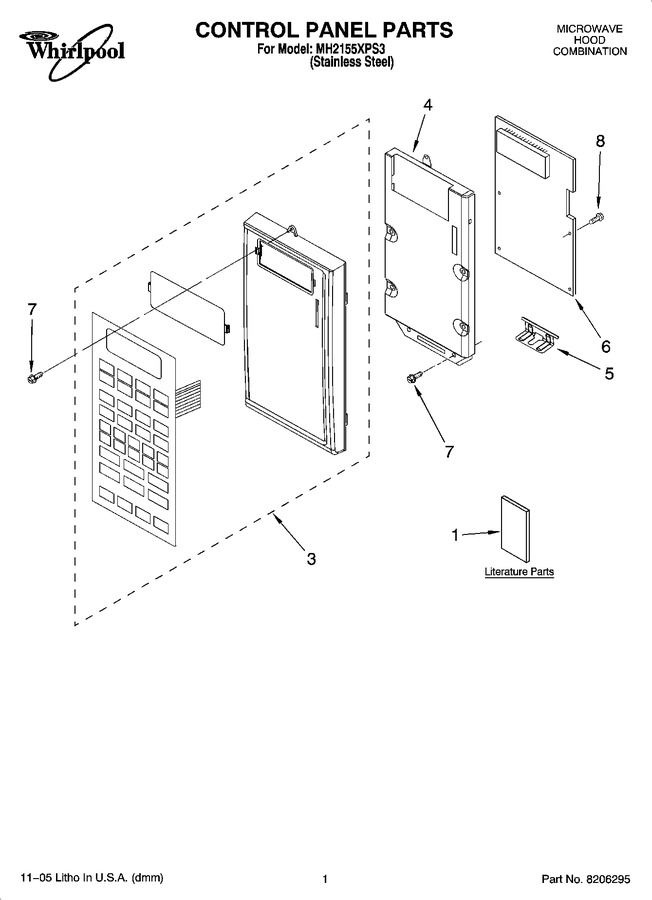

01 - Control Panel Parts
02 - Door Parts
03 - Interior And Ventilation Parts
04 - Air Flow Parts
05 - Magnetron And Turntable Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8205965 | Use & Care Guide |
|
- | |||||
| 1 | 8183878 | Installation Instructions |
|
- | |||||
| 1 | 8205613 | Tech Sheet |
|
- | |||||
| 1 | 8204929 | Guide, Cooking (label) |
|
- | |||||
| 3 | 8205334 | Panel Asy, Control (includes Lens And Membrane Switch) (stainless Steel) |
|
- | |||||
| 4 | 8183821 | Bracket, Control |
|
- | |||||
| 5 | 4393744 | Plate, Hinge |
|
- | |||||
| 6 | 8183726 | Microcomputer |
|
- | |||||
| 7 | 4393828 | Screw |
|
- | |||||
| 8 | 4393346 | Screw |
|
- |
