02 - Cabinet Parts
03 - Air Handling Parts
04 - Electrical Parts
05 - Compressor Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

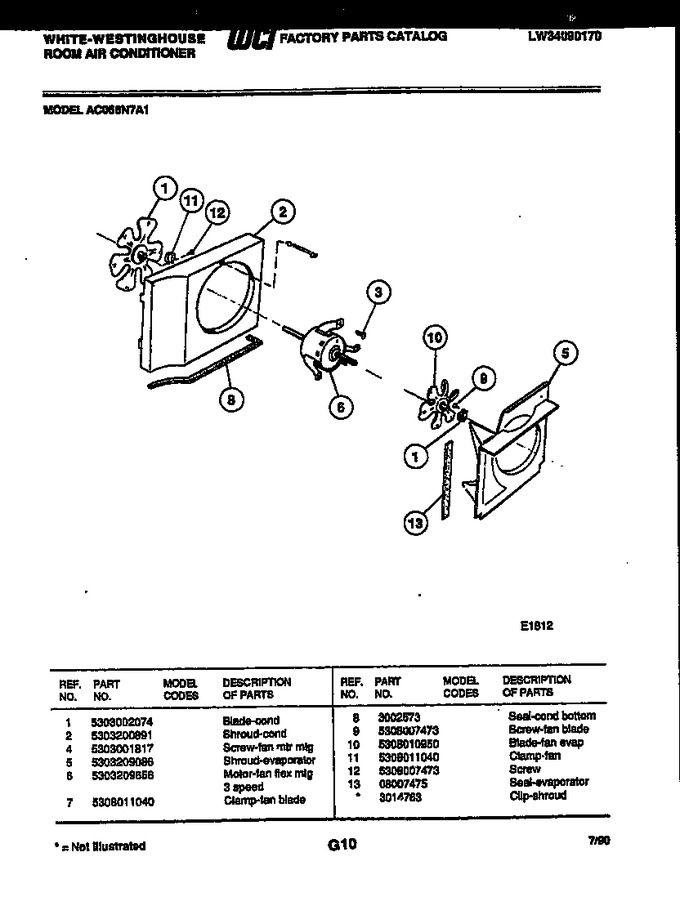

| 1 | 5303002074 | Blade-cond |
|
- | |||||
| 2 | 5303200891 | Shroud-cond |
|
- | |||||
| 4 | 5303001817 | Screw-fan Mtr Mtg |
|
- | |||||
| 5 | 5303209086 | Shroud-evaporator |
|
- | |||||
| 6 | 5303209656 | Motor-fan Flex Mtg 3 Speed |
|
- | |||||
| 7 | 5308011040 | Clamp - Fan Blade |
|
- | |||||
| 8 | 3002573 | Seal-cond Bottom |
|
- | |||||
| 9 | 5308007473 | Screw-fan Blade |
|
- | |||||
| 10 | 5308010950 | Blade-fan Evap |
|
- | |||||
| 11 | 5308011040 | Clamp-fan |
|
- | |||||
| 12 | 5308007473 | Screw |
|
- | |||||
| 13 | 08007475 | Seal-evaporator Shroud |
|
- | |||||
| *32369 | 3014763 | Clip-shroud |
|
- |
