SELECT A DIAGRAM

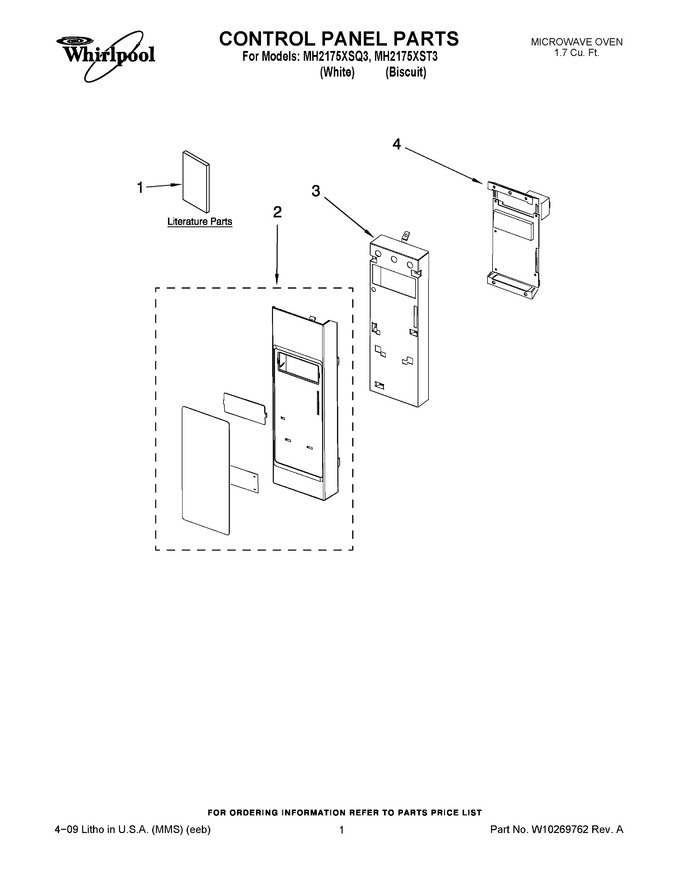

01 - Control Panel Parts


02 - Door Parts


03 - Interior And Ventilation Parts


04 - Air Flow Parts


05 - Turntable Parts


06 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10197620		U & C Guide		Appelez-nous	-
1	W10132042		Tech Sheet, Slim		Appelez-nous	-
1	8205888		Cook Guide Label		Appelez-nous	-
1	W10238252		Install,instruct		Appelez-nous	-
2	W10166799		Panel Asy, Control Includes Lens And Membrane Switch (white)				$ 175.81
2	W10166802		Panel Asy, Control Includes Lens And Membrane Switch (biscuit)				$ 22.93
3	W10210862		Bracket, Control				$ 17.62
4	W10197772		Microcomputer				$ 366.86

    View Diagram in Separate Window       Print Part List
