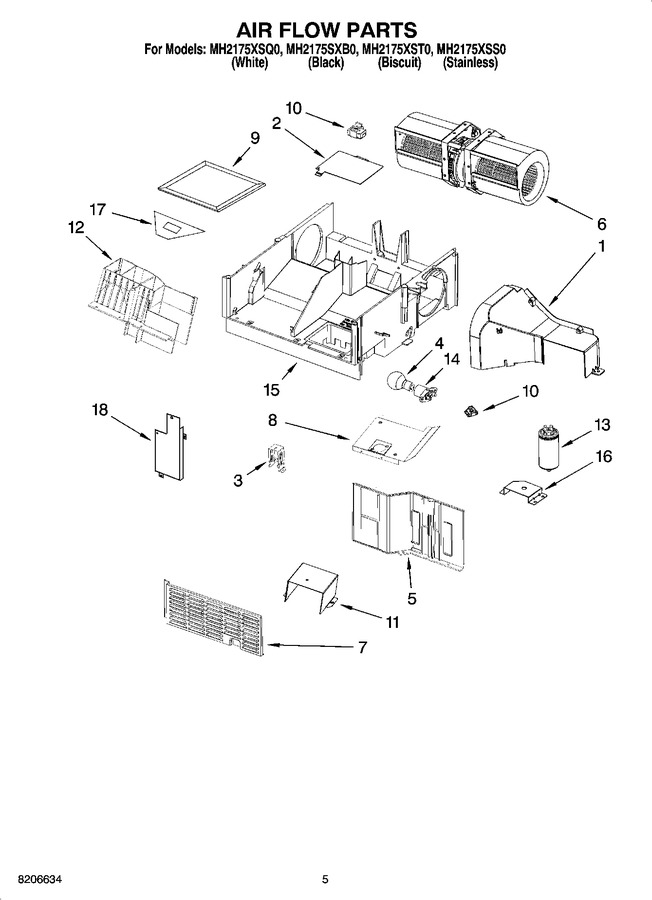

04 - Air Flow Parts
05 - Magnetron And Turntable Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8206340 | Deflector, Air |
|
$ 146.24 | |||||
| 2 | 8206382 | Cover, Lamp |
|
$ 7.87 | |||||
| 3 | 8206626 | Sensor, Humidity |
|
$ 84.84 | |||||
| 4 | 8206232A | Lamp (Replaces: 4393681) |
|
Immediately | $ 6.61 | ||||
| 5 | 8206371 | Cover, Side Inlet |
|
- | |||||
| 6 | W10114550 | Motor, Fan Assy |
|
- | |||||
| 7 | W10107800 | Shield |
|
- | |||||
| 8 | W10247762 | Air Guide (Replaces: 8206627) |
|
- | |||||
| 9 | 8206230A | Filter, Charcoal (Replaces: 8206230) |
|
Immediately | $ 17.33 | ||||
| 10 | W10110862 | Mounting, Nut (2) |
|
- | |||||
| 11 | 8206625 | Channel, Air |
|
- | |||||
| 12 | 8206628 | Air Guide, Plate |
|
- | |||||
| 13 | 8206624 | Filter |
|
$ 38.80 | |||||
| 14 | 8169539 | Holder, Lamp |
|
$ 54.43 | |||||
| 15 | 8206383 | Base Plate, Air Guide |
|
- | |||||
| 16 | 8206368 | Brkt-mntg, Filter |
|
- | |||||
| 17 | 8185097 | Socket, Motor Wire |
|
- | |||||
| 18 | 8206629 | Cover, Inlet Air Cavity Guide |
|
- |
