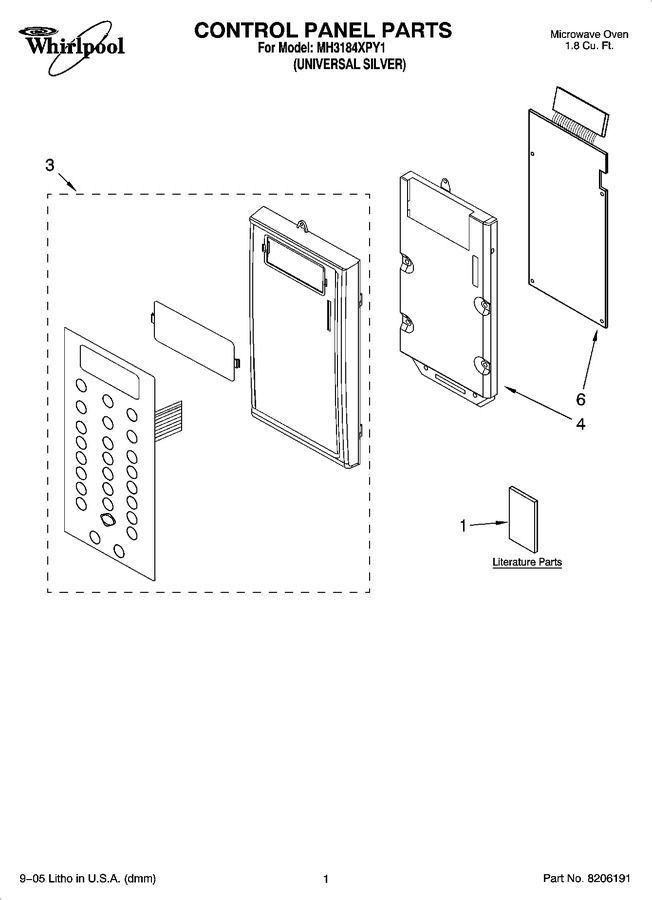

01 - Control Panel Parts
02 - Door Parts
03 - Interior And Ventilation Parts
04 - Air Flow Parts
05 - Magnetron And Turntable Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8204920 | U & C Guide |
|
- | |||||
| 1 | 8205606 | Tech Sheet |
|
- | |||||
| 1 | 8190419 | Instructn, Install |
|
- | |||||
| 1 | 8205810 | Cook Guide Label |
|
- | |||||
| 3 | 8205375 | Panel Asy, Control Includes Lens And Membrane Switch |
|
- | |||||
| 4 | 8205378 | Bracket, Control |
|
- | |||||
| 6 | 8205379 | Microcomputer |
|
- |
