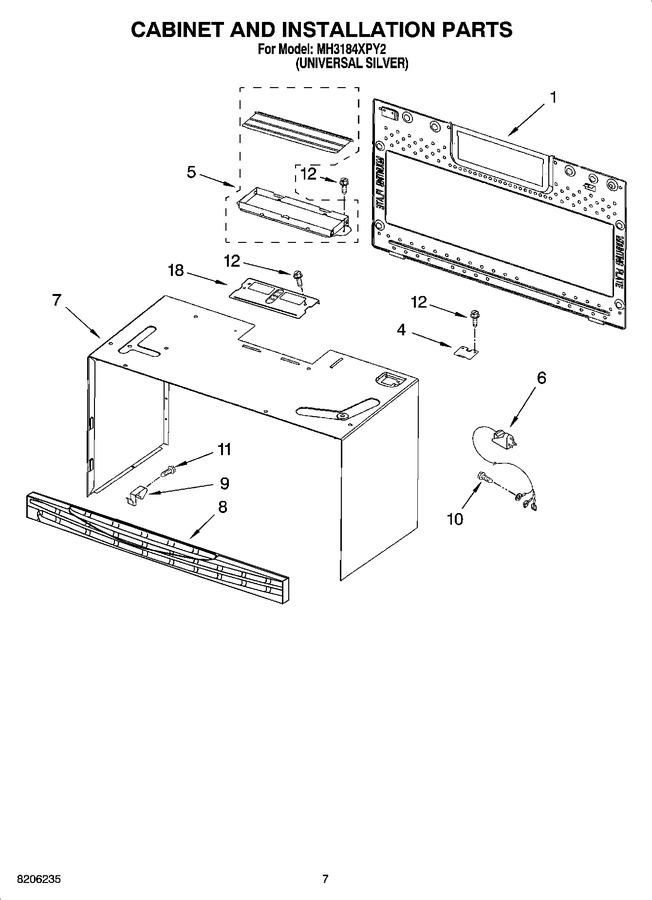

01 - Control Panel Parts
02 - Door Parts
03 - Interior And Ventilation Parts
04 - Air Flow Parts
05 - Magnetron And Turntable Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8206172 | Plate, Mounting |
|
- | |||||
| 4 | 8184897 | Lid, Power Cord |
|
- | |||||
| 5 | W10843943 | Damper Assembly (Replaces: 8205558) |
|
Immediately | $ 65.74 | ||||
| 6 | W10708076 | Cord, Power (Replaces: 8205808) |
|
$ 18.48 | |||||
| 7 | 8205348 | Case, Outer |
|
- | |||||
| 8 | 8206193 | Grille, Vent |
|
- | |||||
| 9 | W10615742 | Clip, Grille (Replaces: 8184190) |
|
$ 7.38 | |||||
| 10 | 4393836 | Screw |
|
- | |||||
| 11 | 8169475 | Screw |
|
$ 6.64 | |||||
| 12 | 4393472 | Screw |
|
- | |||||
| 18 | 8206195 | Harness, Turntable And Cooktop Lights |
|
- | |||||
| 18 | 8205695 | Main Harness |
|
- | |||||
| 18 | 8206192 | Plate, Damper |
|
- | |||||
| 18 | N/A | Miscellaneous |
|
- | |||||
| 18 | 8205948 | Installation, Hardware |
|
$ 23.06 | |||||
| 18 | 8184731 | Template, Upper |
|
- | |||||
| 18 | WP8169704 | Screw, Top Mountng (Replaces: 8169704) |
|
Immediately | $ 10.07 | ||||
| 18 | W10539840 | Ground Wire Assy (Replaces: 8205696) |
|
$ 21.50 | |||||
| 18 | 8205693 | H.v. Wire Assy |
|
- |
