SELECT A DIAGRAM

01 - Control Panel Parts


02 - Door Parts


03 - Interior And Ventilation Parts

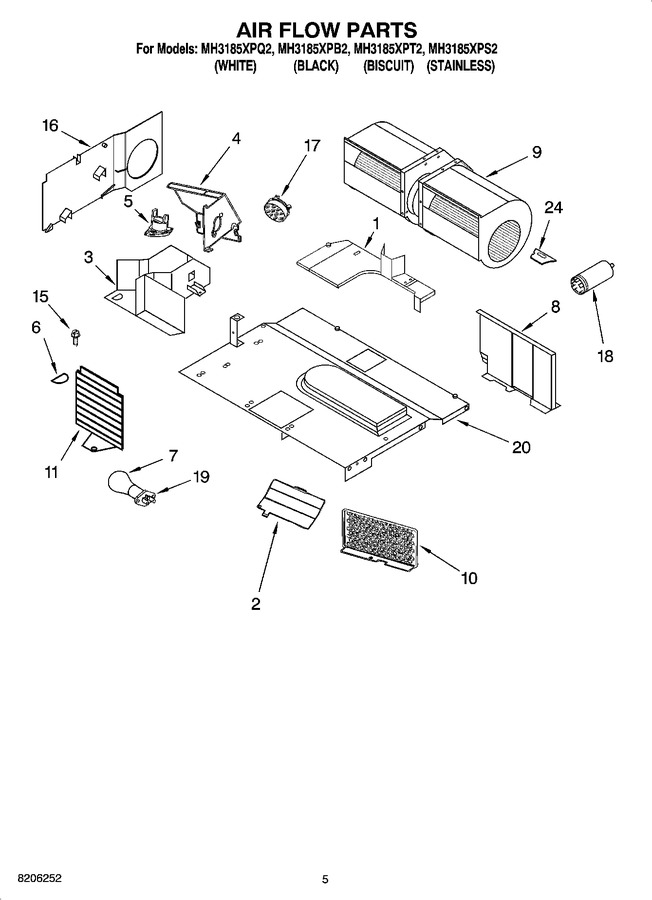

04 - Air Flow Parts


05 - Magnetron And Turntable Parts


06 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8205350		Deflector, Air		Appelez-nous	-
2	8205353		Cover, Lamp		Appelez-nous	-
3	8205368		Duct, Air		Appelez-nous	-
4	8204789		Bracket, Thermostat		Appelez-nous	-
5	8183703		Thermostat		Appelez-nous	-
6	8204676		Cover		Appelez-nous	-
7	8206232A		Lamp   (Replaces: 8183993)			Immediately	$ 6.61
8	8205354		Air Guide, Back		Appelez-nous	-
9	8184825		Motor, Fan Assy		Appelez-nous	-
10	8205355		Shield		Appelez-nous	-
11	8204790		Shield		Appelez-nous	-
15	8169474		Screw				$ 8.51
16	8205352		Air Guide (right)		Appelez-nous	-
16	8205367		Air Guide (left)		Appelez-nous	-
17	4393808		Humidity, Sensor		Appelez-nous	-
18	8169561		Filter		Appelez-nous	-
19	8169539		Holder, Lamp				$ 54.43
20	8205351		Base Plate, Air Guide		Appelez-nous	-
24	8185097		Socket, Motor Wire		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
