View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Magnetron And Air Flow
03 - Installation Parts
04 - Cabinet
05 - Door, Wiring Harness, Lit/optional
06 - Control Panel
07 - Cavity And Stirrer

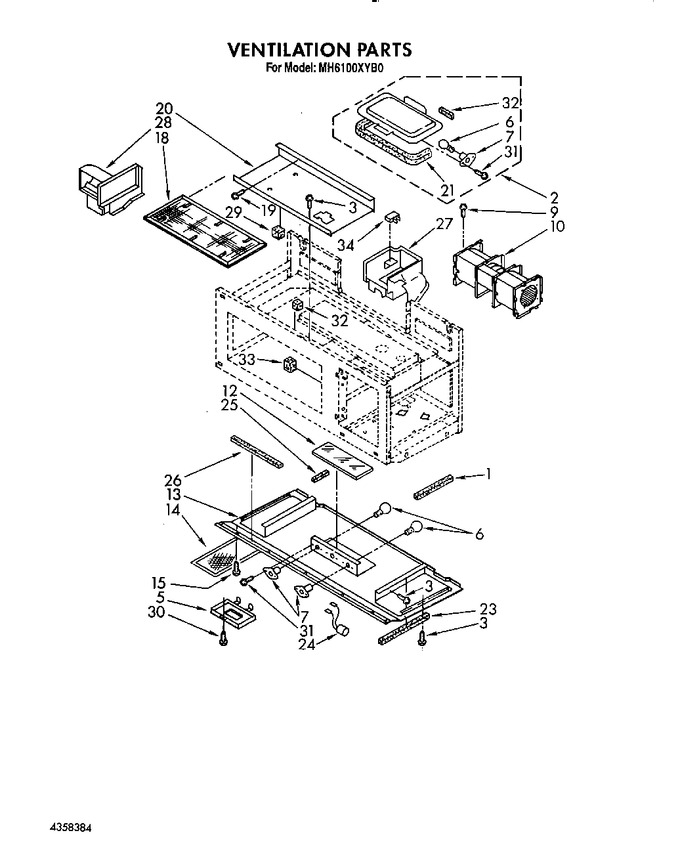

08 - Ventilation
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4358055 | Seal |
|
$ 4.83 | |||||
| 2 | 4358023 | Lamp Asm. |
|
- | |||||
| 3 | 4158076 | Screw |
|
- | |||||
| 5 | 4358040 | Oven Lamp Cover |
|
- | |||||
| 6 | 8206232A | Oven Lamp (30 Watt) (Replaces: 4158344) |
|
Immediately | $ 6.61 | ||||
| 7 | 4158364 | Lamp Holder |
|
- | |||||
| 9 | 4358192 | Screw (2) |
|
- | |||||
| 10 | 4358024 | Ventilation Motor Asm. |
|
- | |||||
| 12 | 4358033 | Cooktop Lamp Glass |
|
- | |||||
| 13 | 4358027 | Base Plate |
|
- | |||||
| 14 | 4358030 | Air Filter (2) |
|
$ 16.66 | |||||
| 15 | 4158353 | Screw (3) |
|
- | |||||
| 18 | 4358003 | Charcoal Filter Assy. |
|
- | |||||
| 19 | 4358381 | Screw |
|
- | |||||
| 20 | 4358038 | Air Path (front) |
|
- | |||||
| 21 | 4358022 | Seal |
|
- | |||||
| 23 | 4358028 | Seal |
|
- | |||||
| 24 | 4358032 | Wiring Harness |
|
- | |||||
| 25 | 4358034 | Seal, Lamp |
|
- | |||||
| 26 | 4358035 | Seal, Base |
|
- | |||||
| 27 | 4358029 | Duct, R.s. |
|
- | |||||
| 28 | 4358036 | Duct, L.s. |
|
- | |||||
| 29 | 4358039 | Cushion |
|
- | |||||
| 30 | 4358380 | Screw |
|
$ 11.75 | |||||
| 31 | 4358191 | Screw |
|
- | |||||
| 32 | 4358041 | Seal, Lamp |
|
- | |||||
| 33 | 4358042 | Seal, Damper |
|
- | |||||
| 34 | 4158376 | Fuse, Thermal |
|
- |
