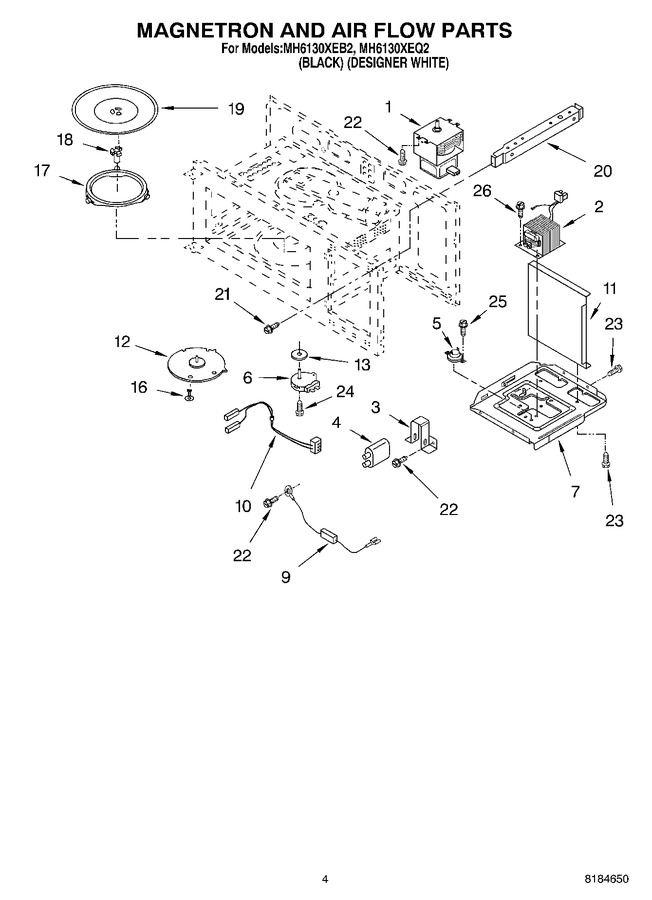

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4359617		Magnetron		Appelez-nous	-
2	8183883		Transformer, H.v.		Appelez-nous	-
3	4359497		Bracket, H.v.		Appelez-nous	-
4	8183884		Capacitor, H.v.		Appelez-nous	-
5	4158368		Base Thermostat		Appelez-nous	-
6	4359499		Motor, Turntable		Appelez-nous	-
7	4359500		Plate		Appelez-nous	-
9	WP8205489		H.v. Diode Cable   (Replaces: 8171879)				$ 58.19
10	4359503		Lead Wire		Appelez-nous	-
11	4359504		Guide		Appelez-nous	-
12	4359963		Cover				$ 79.78
13	8171805		Seal-gasket		Appelez-nous	-
16	WP4359508		Rivet   (Replaces: 4359508)				$ 8.28
17	4359509		Rotating Ring		Appelez-nous	-
18	4359618		Turntable Shaft		Appelez-nous	-
19	WP8172138		Glass Tray   (Replaces: 8172138)				$ 87.23
20	4359510		Plate		Appelez-nous	-
21	4358192		Screw		Appelez-nous	-
22	4344826		Screw   (Replaces: 4358489)				$ 14.31
23	4358381		Screw		Appelez-nous	-
24	4358188		Screw		Appelez-nous	-
25	4358376		Screw		Appelez-nous	-
26	WP3400094		Screw   (Replaces: 4158747)				$ 7.14

    View Diagram in Separate Window       Print Part List
