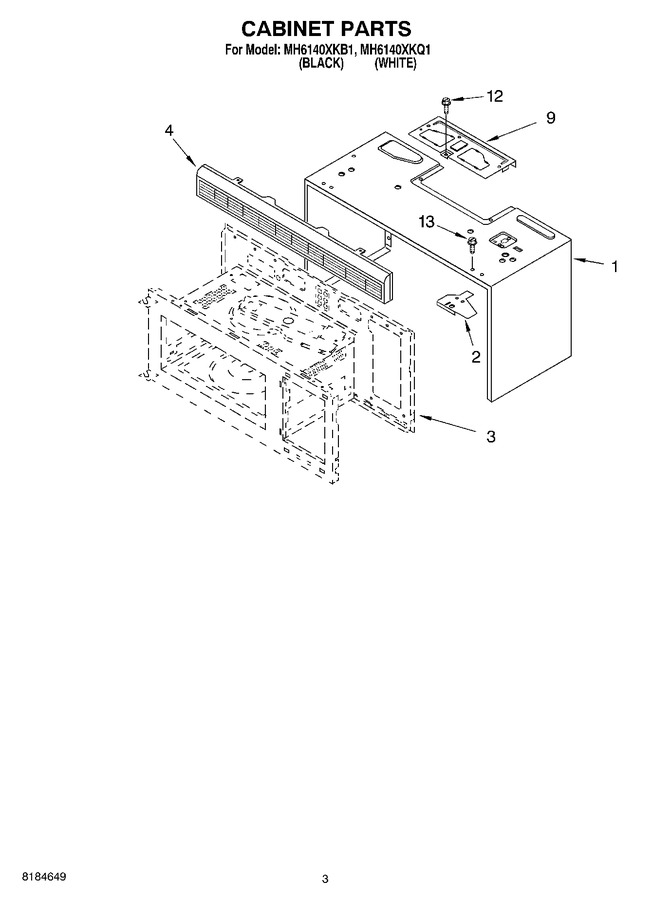

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8184035 | Outer Case (white) |
|
- | |||||
| 1 | 8184034 | Outer Case (black) |
|
- | |||||
| 2 | 4358928 | Mounting Bracket |
|
- | |||||
| 4 | 8184038 | Grille Vent (white) |
|
- | |||||
| 4 | 8184037 | Grille Vent (black) |
|
- | |||||
| 9 | 8184655 | Plate, Mount |
|
- | |||||
| 12 | 4358381 | Screw |
|
- | |||||
| 13 | 4359009 | Screw (white) |
|
- | |||||
| 13 | 4358762 | Screw (black) |
|
