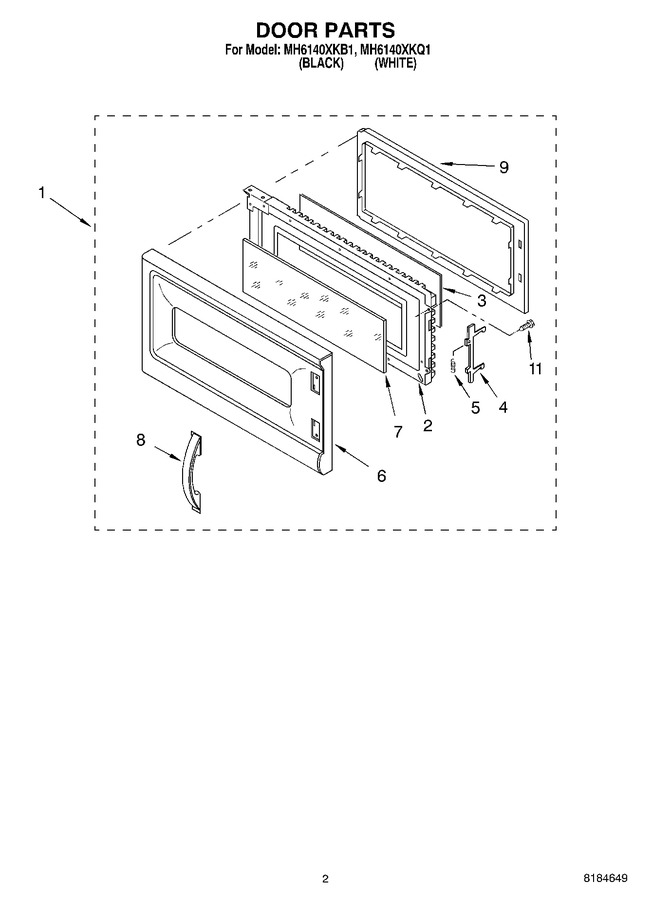

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8184031 | Door Assembly (black) |
|
- | |||||
| 1 | 8184032 | Door Assembly (white) |
|
- | |||||
| 2 | 8172111 | Frame, Door |
|
- | |||||
| 3 | WPW10146437 | Tape, Seal (Replaces: 8171844) |
|
$ 79.74 | |||||
| 4 | 8171850 | Latch |
|
- | |||||
| 5 | 8184016 | Spring, Latch |
|
- | |||||
| 6 | 8172121 | Panel, Door (white) |
|
- | |||||
| 6 | 8172122 | Panel, Door (black) |
|
- | |||||
| 7 | 8172125 | Glass, Door |
|
- | |||||
| 8 | 8172119 | Handle, Door (black) |
|
- | |||||
| 8 | 8172118 | Handle, Door (white) |
|
- | |||||
| 9 | 8171846 | Choke, Cover |
|
- | |||||
| 11 | 4358381 | Screw |
|
- |
