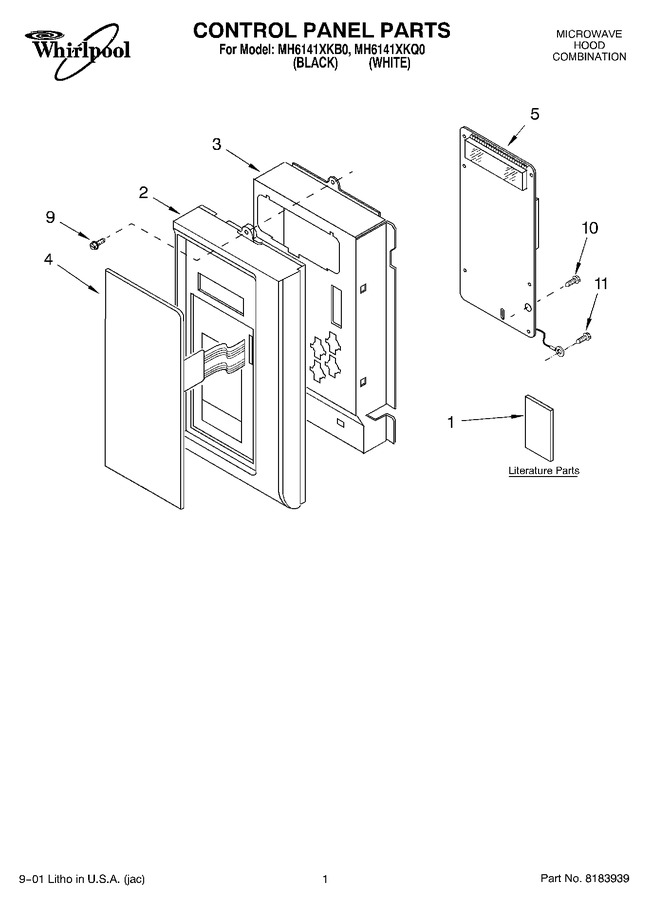

01 - Control Panel, Literature


02 - Door


03 - Cabinet


04 - Magnetron And Airflow


05 - Interior


06 - Latch Board


07 - Ventilation


08 - Installation


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8183895		Literature Parts (instructions, Installation)		Appelez-nous	-
1	LIT8183894		Literature Parts (tech Sheet)		Appelez-nous	-
1	LIT8183892		Literature Parts (guide, Cooking)		Appelez-nous	-
1	LIT8183890		Literature Parts (guide, U & C)		Appelez-nous	-
2	8184018		Control Panel (white)		Appelez-nous	-
2	8184017		Control Panel (black)		Appelez-nous	-
3	8171855		Bracket, Control		Appelez-nous	-
4	8184327		Key Membrane (white)		Appelez-nous	-
4	8184326		Key Membrane (black)		Appelez-nous	-
5	8184013		Pcb Sub Assy.		Appelez-nous	-
9	4358762		Screw (black)				$ 7.10
9	4358381		Screw (white)		Appelez-nous	-
10	4358883		Screw		Appelez-nous	-
11	4344826		Screw   (Replaces: 4358489)				$ 14.31
