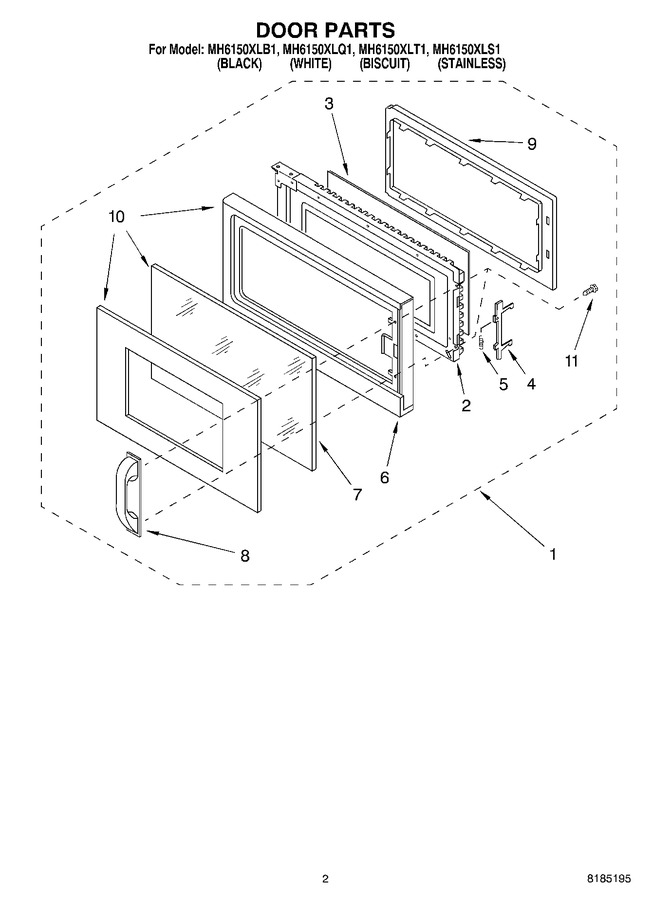

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8183973		Door Assembly (white)		Appelez-nous	-
1	8183974		Door Assembly (biscuit)		Appelez-nous	-
1	8184964		Door Assembly (stainless)		Appelez-nous	-
1	8184031		Door Assembly (black)		Appelez-nous	-
2	8183976		Frame, Door (stainless Model)		Appelez-nous	-
2	8172110		Frame, Door (bl/wh/bt Models)		Appelez-nous	-
3	WPW10146437		Tape, Seal   (Replaces: 8171844)				$ 79.74
4	8171850		Latch		Appelez-nous	-
5	8183882		Spring, Latch		Appelez-nous	-
6	8172123		Panel, Door (biscuit)		Appelez-nous	-
6	8172122		Panel, Door (black)		Appelez-nous	-
6	8172121		Panel, Door (white)		Appelez-nous	-
7	8184746		Glass, Door (bl/wh Models)		Appelez-nous	-
7	8172125		Glass, Door (bt Model)		Appelez-nous	-
8	8172120		Handle, Door (biscuit)		Appelez-nous	-
8	8172119		Handle, Door (black)		Appelez-nous	-
8	8171848		Handle, Door (stainless Model)		Appelez-nous	-
8	8172118		Handle, Door (white)		Appelez-nous	-
9	8171846		Choke, Cover		Appelez-nous	-
10	8184756		Panel/glass Assy Stls Model Only		Appelez-nous	-
11	4358192		Screw		Appelez-nous	-
