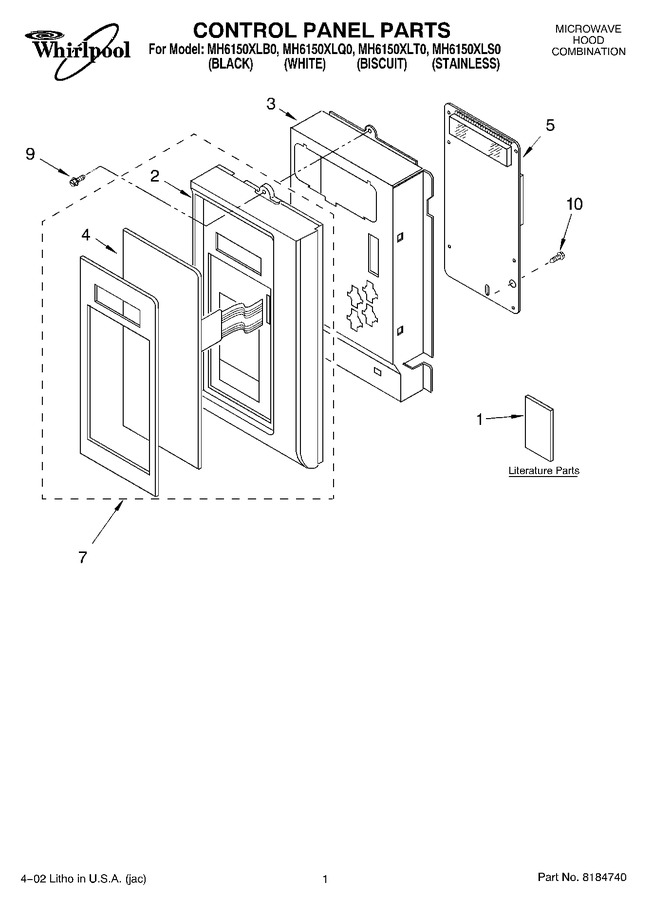

01 - Control Panel, Literature
02 - Door
03 - Cabinet
04 - Magnetron And Air Flow
05 - Interior
06 - Latch Board
07 - Ventilation
08 - Installation
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT8184550 | Literature Parts (guide, U & C) |
|
- | |||||
| 1 | LIT8183991 | Literature Parts (instructions, Installation) |
|
- | |||||
| 1 | LIT8184551 | Literature Parts (tech Sheet) |
|
- | |||||
| 1 | LIT8184552 | Literature Parts (guide, Cooking) |
|
- | |||||
| 2 | 8184018 | Control Panel (white) |
|
- | |||||
| 2 | 8184759 | Control Panel (biscuit) |
|
- | |||||
| 2 | 8184017 | Control Panel (black) |
|
- | |||||
| 3 | 8171855 | Bracket, Control (stainless Model) |
|
- | |||||
| 3 | 8184653 | Bracket, Control (bl/wh/bt/ Models) |
|
- | |||||
| 4 | 8172133 | Key Membrane (black) |
|
- | |||||
| 4 | 8172134 | Key Membrane (biscuit) |
|
- | |||||
| 4 | 8172132 | Key Membrane (white) |
|
- | |||||
| 5 | 8184747 | Microcomputer |
|
- | |||||
| 7 | 8184757 | Panel/membrane Asy Stls Model Only |
|
- | |||||
| 9 | 4359009 | Screw (wh/bt) |
|
- | |||||
| 9 | 4358762 | Screw (bl/stls) |
|
$ 7.10 | |||||
| 10 | 4358883 | Screw |
|
- |
