02 - Control Panel
03 - Body Parts
04 - Door Parts
New Model Search:

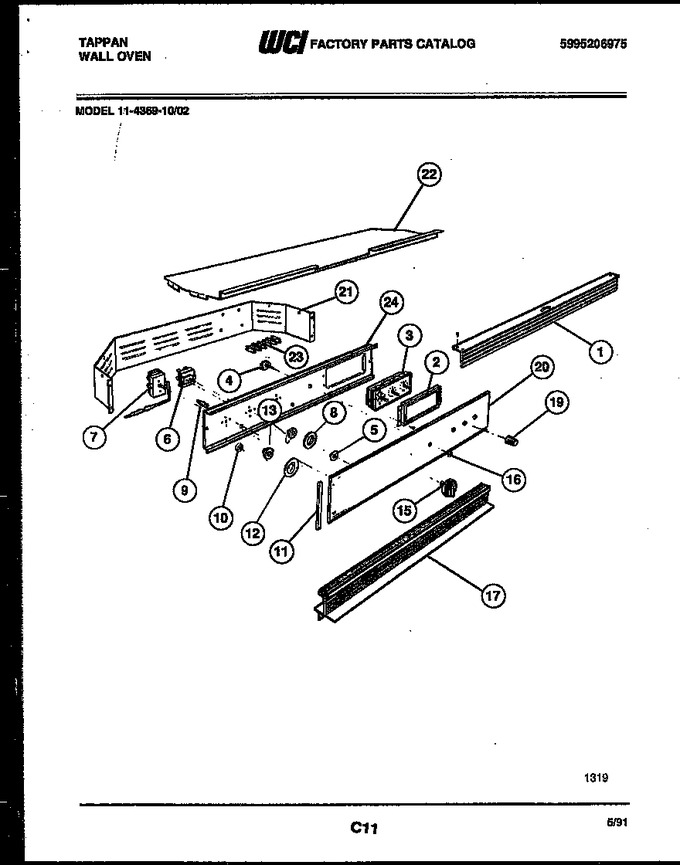

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3203938 | Trim-top Vent |
|
- | |||||
| 2 | 3202088 | Bracket-clock |
|
- | |||||
| 3 | 3203878 | Clock |
|
- | |||||
| 4 | 5308003383 | Switch-light |
|
- | |||||
| 5 | 3203884 | Spacer - Dial Sec. |
|
- | |||||
| 6 | 3203879 | Switch-select |
|
- | |||||
| 7 | 3203880 | Thermostat |
|
- | |||||
| 8 | 3203886 | Dial - Sel Switch |
|
- | |||||
| 9 | 3202194 | Light, Indicator, Oven |
|
- | |||||
| 10 | 3202093 | Bumper (6) |
|
- | |||||
| 11 | 3202140 | Trim-cntrl Pnl Gl (2) |
|
- | |||||
| 12 | 5303270130 | Dial-therm |
|
- | |||||
| 13 | 3203712 | Spacer - Dial (2) |
|
- | |||||
| 15 | 3202178 | Knob (2) |
|
- | |||||
| 16 | 5303016305 | Bezel - Switch |
|
- | |||||
| 17 | 5303202101 | Trim-center Vent |
|
- | |||||
| 19 | 3202285 | Knob-clock (3) |
|
- | |||||
| 20 | 3203937 | Glass-control Panel |
|
- | |||||
| 21 | 3016250 | Housing, Control |
|
- | |||||
| 22 | 3016309 | Cover-control Housing |
|
- | |||||
| 23 | 5304409888 | Block, Terminal (Replaces: 5306563359) |
|
Immediately | $ 26.69 | ||||
| 24 | 3202199 | Plate-instr Mtg |
|
- | |||||
| *49884 | 3203711 | Sleeve - Ind Light |
|
- |
