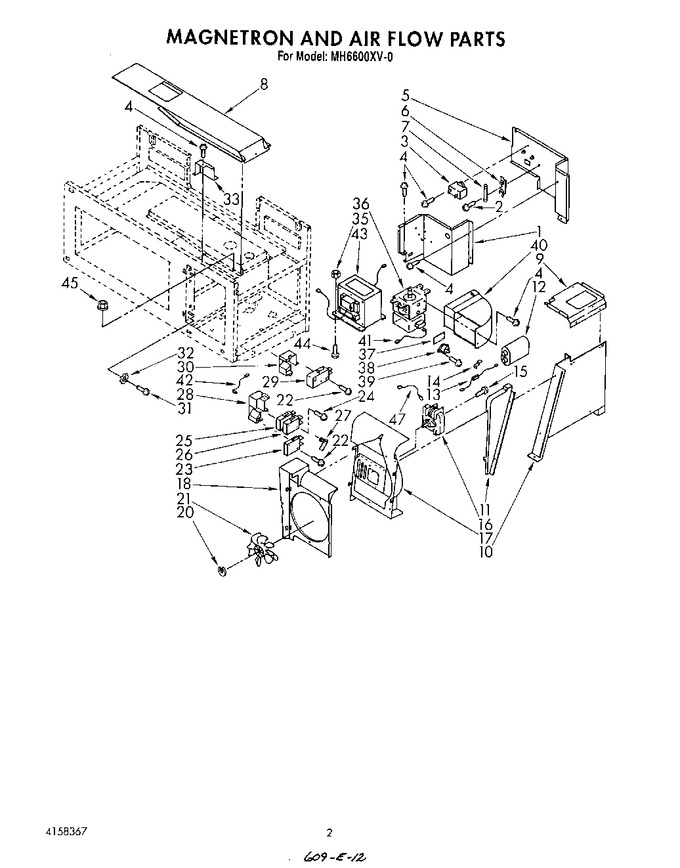

02 - Magnetron And Air Flow


03 - Installation


04 - Cabinet


05 - Door , Wiring Harness , Lit/optional


06 - Control Panel


07 - Cavity And Stirrer


08 - Ventilation


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4158375		Vent Duct		Appelez-nous	-
2	4158072		Screw (3)		Appelez-nous	-
3	4158376		Fuse, Thermal		Appelez-nous	-
4	4158076		Screw (21)		Appelez-nous	-
5	4158377		Air Guide		Appelez-nous	-
6	4158059		Holder, Fuse		Appelez-nous	-
7	4158378		Fuse		Appelez-nous	-
8	4158379		Motor Base		Appelez-nous	-
9	4158380		Air Guide		Appelez-nous	-
10	4158381		Air Guide		Appelez-nous	-
11	4158382		Fan Cover Bracket		Appelez-nous	-
12	4158383		Capacitor		Appelez-nous	-
13	4158045		Diode		Appelez-nous	-
14	4158384		Capacitor Bracket		Appelez-nous	-
15	4158189		Screw (3)		Appelez-nous	-
16	4158385		Fan Motor		Appelez-nous	-
17	4158386		Fan Cover		Appelez-nous	-
18	4158387		Fan Cover Back		Appelez-nous	-
20	4158063		E-ring		Appelez-nous	-
21	4158389		Propeller		Appelez-nous	-
22	4158187		Screw (2)		Appelez-nous	-
23	4158197		Micro Switch		Appelez-nous	-
24	4158208		Screw		Appelez-nous	-
25	4158067		Micro Switch		Appelez-nous	-
26	4392027		Micro Switch   (Replaces: 4158102)				$ 138.41
27	4158390		Lever, Switch		Appelez-nous	-
28	4158391		Latch Board		Appelez-nous	-
29	4392027		Micro Switch   (Replaces: 4158195)				$ 138.41
30	4158392		Latch Board		Appelez-nous	-
31	4158307		Special Screw (2)		Appelez-nous	-
32	4158393		Toothed Washer		Appelez-nous	-
33	4158394		Fan Guide		Appelez-nous	-
35	4158053		Nut (2)		Appelez-nous	-
36	4158395		Magnetron		Appelez-nous	-
37	4158396		Thermo Insulator		Appelez-nous	-
38	4158397		Thermostat		Appelez-nous	-
39	4158082		Screw (2)		Appelez-nous	-
40	4158398		Air Duct		Appelez-nous	-
41	4158399		Cable Assy.		Appelez-nous	-
42	4153400		Cable Assy.		Appelez-nous	-
43	4158401		Transformer		Appelez-nous	-
44	4158402		Screw (2)		Appelez-nous	-
45	4158403		Magnetron Nut (4)		Appelez-nous	-
47	4158405		Lead Wire		Appelez-nous	-
