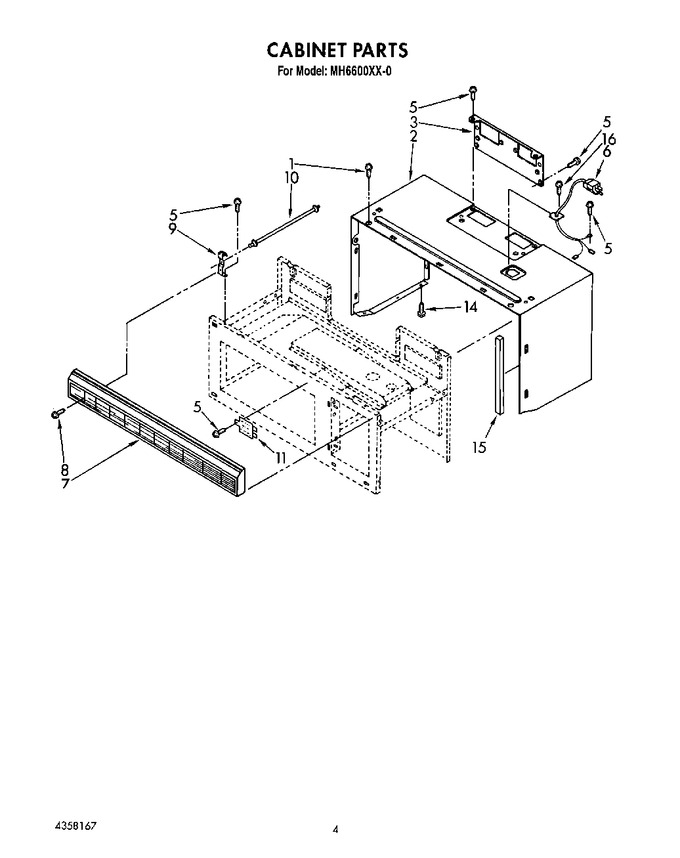

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4358015 | Screw (12) |
|
- | |||||
| 2 | 4358016 | Outer Case |
|
- | |||||
| 3 | 4358017 | Vent Fan Mounting Bracket |
|
- | |||||
| 5 | 4158071 | Screw (6) |
|
- | |||||
| 6 | 4358172 | Power Cord Assy. |
|
- | |||||
| 7 | 4358019 | Vent Grille |
|
- | |||||
| 8 | 4158425 | Screw (3) |
|
- | |||||
| 9 | 4158426 | Front Bracket |
|
- | |||||
| 10 | 4158427 | Mounting Rod |
|
- | |||||
| 11 | 4358020 | Sealed Plate-r.h. |
|
- | |||||
| 14 | 4158308 | Screw |
|
- | |||||
| 15 | 4358021 | Seal |
|
- | |||||
| 16 | 4158190 | Screw |
|
- |
