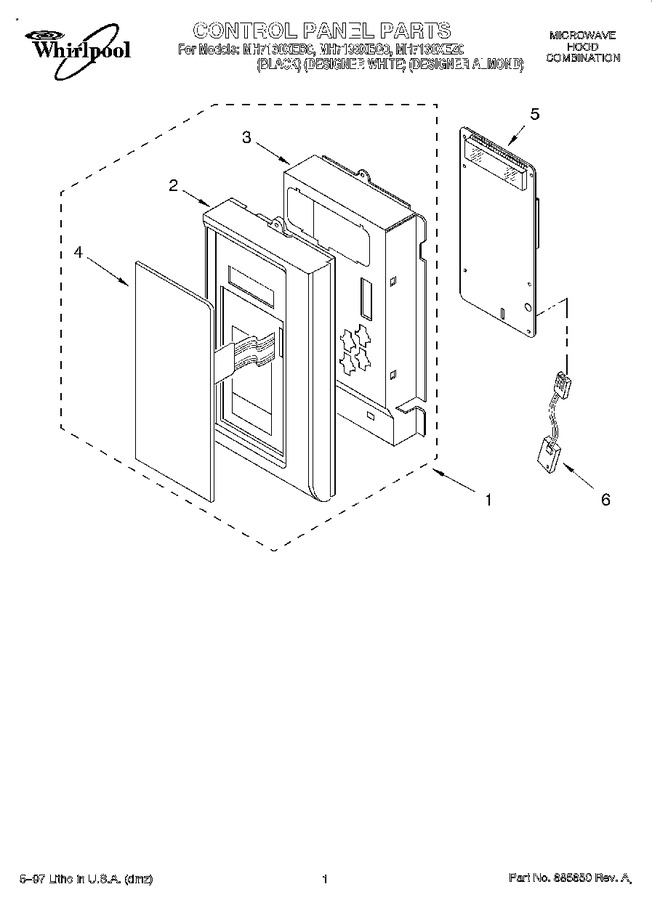

01 - Control Panel
02 - Door
03 - Cabinet
04 - Magnetron And Air Flow
05 - Interior, Lit/optional
06 - Latch Board
07 - Ventilation
08 - Installation
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4359478 | Controller Sub Assy. (black Model) |
|
- | |||||
| 1 | 4359477 | Controller Sub Assy. (white Model) |
|
- | |||||
| 1 | 4359552 | Controller Sub Assy. (almond) |
|
- | |||||
| 2 | 4359480 | Control Panel (black Model) |
|
- | |||||
| 2 | 4358762 | Control Panel (screw) |
|
$ 7.10 | |||||
| 2 | 4359479 | Control Panel (white Model) |
|
- | |||||
| 2 | 4359009 | Control Panel (screw) |
|
- | |||||
| 2 | 4359553 | Control Panel (almond) |
|
- | |||||
| 3 | 4359481 | Bracket, Control |
|
- | |||||
| 4 | 4359483 | Key Membrane (black Model) |
|
- | |||||
| 4 | 4359482 | Key Membrane (white Model) |
|
- | |||||
| 4 | 4359554 | Key Membrane (almond) |
|
- | |||||
| 5 | 4359413 | Pcb Sub Assy. |
|
- | |||||
| 5 | 4359485 | Screw |
|
- | |||||
| 6 | 4359486 | Pwb Sub, Assy |
|
- |
