01 - Control Panel, Literature

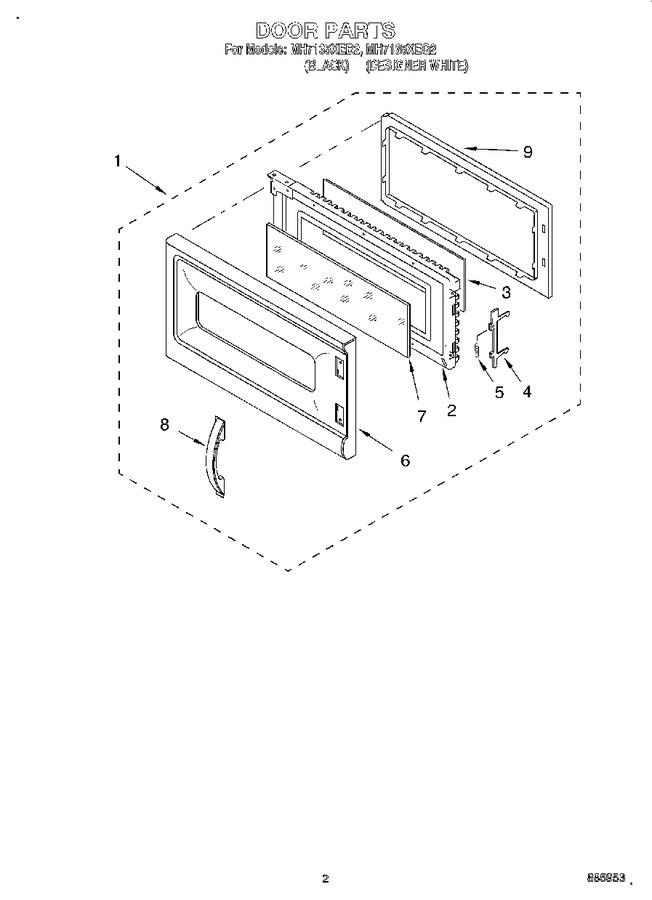

02 - Door
03 - Cabinet
04 - Magnetron And Air Flow
05 - Interior
06 - Latch Board
07 - Ventilation
08 - Installation
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4359978 | Door Assembly (black) |
|
- | |||||
| 1 | 4359976 | Door Assembly (white) |
|
- | |||||
| 2 | 4359979 | Frame, Door (black) |
|
- | |||||
| 2 | 4359977 | Frame, Door (white) |
|
- | |||||
| 3 | WPW10146437 | Tape, Seal (Replaces: 4359467) |
|
$ 79.74 | |||||
| 4 | 4359860 | Latch (black) |
|
$ 7.56 | |||||
| 4 | 4358546 | Latch (white) |
|
- | |||||
| 5 | 4358607 | Spring, Latch |
|
- | |||||
| 6 | 4359470 | Panel, Door (black) |
|
- | |||||
| 6 | 4359469 | Panel, Door (white) |
|
- | |||||
| 7 | 4359548 | Glass, Door (black Model) |
|
- | |||||
| 7 | 4359547 | Glass, Door (white Model) |
|
- | |||||
| 8 | 4359474 | Handle, Door (black Model) |
|
- | |||||
| 8 | 4359473 | Handle, Door (white Model) |
|
- | |||||
| 9 | 4359476 | Choke, Cover (black) |
|
- | |||||
| 9 | 4359475 | Choke, Cover (white Model) |
|
- | |||||
| 9 | 4358479 | Choke, Cover (screw) |
|
- |
