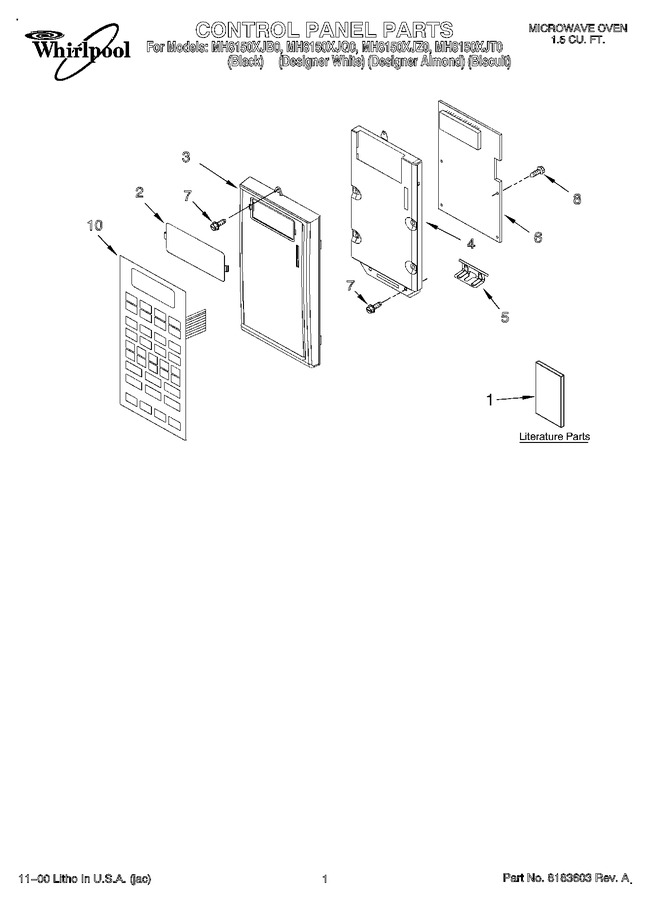

01 - Control Panel, Literature
02 - Door
03 - Interior And Ventilation
04 - Air Flow
05 - Magnetron & Turntable
06 - Cabinet And Installation, Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT8169687 | Literature Parts (guide, U & C) |
|
- | |||||
| 1 | LIT8169769 | Literature Parts (instructions, Installation) |
|
- | |||||
| 1 | LIT8169689 | Literature Parts (tech Sheet) |
|
- | |||||
| 1 | LIT8183715 | Literature Parts (guide, Cooking (label)) |
|
- | |||||
| 2 | 8183724 | Lens (biscuit Model) |
|
- | |||||
| 2 | 8183708 | Lens (b/q/z Models) |
|
- | |||||
| 3 | 8183711 | Panel, Control (almond) |
|
- | |||||
| 3 | 8183725 | Panel, Control (biscuit) |
|
- | |||||
| 3 | 8183710 | Panel, Control (white) |
|
- | |||||
| 3 | 8183709 | Panel, Control (black) |
|
- | |||||
| 4 | 8183712 | Bracket, Control |
|
- | |||||
| 5 | 4393744 | Plate, Hinge |
|
- | |||||
| 6 | 8183713 | Microcomputer |
|
- | |||||
| 7 | 4393828 | Screw |
|
- | |||||
| 8 | 4393346 | Screw |
|
- | |||||
| 10 | 8183816 | Switch, Membrane (biscuit) |
|
- | |||||
| 10 | 8183706 | Switch, Membrane (white) |
|
- | |||||
| 10 | 8183705 | Switch, Membrane (black) |
|
- | |||||
| 10 | 8183707 | Switch, Membrane (almond) |
|
- |
