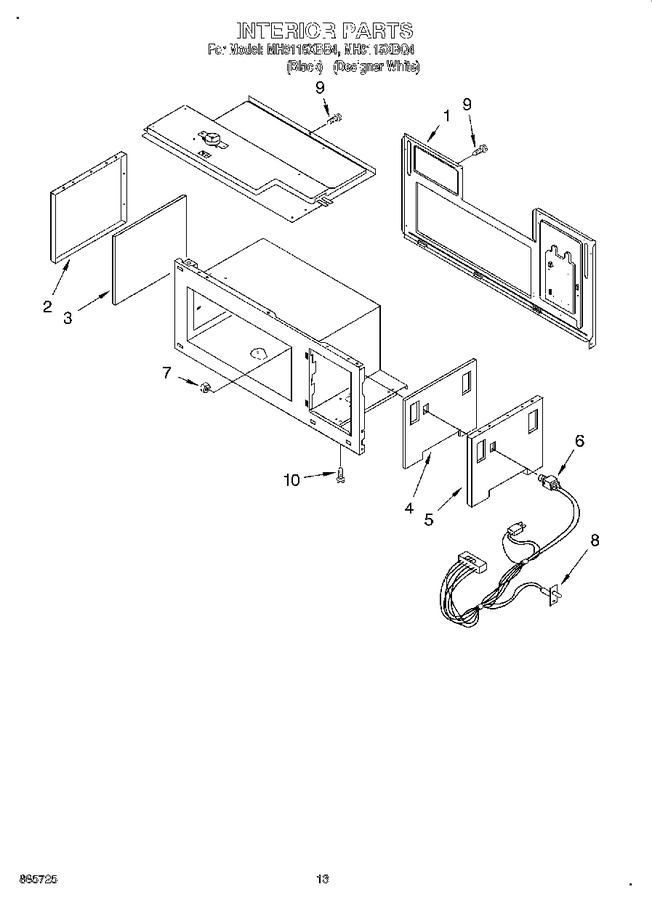

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4358974 | Cover, Back |
|
- | |||||
| 2 | 4358975 | Cover, Insulation |
|
- | |||||
| 3 | 4358976 | Insulation |
|
- | |||||
| 4 | 4358977 | Insulation |
|
- | |||||
| 5 | 4358978 | Cover, Insulation |
|
- | |||||
| 6 | 4358979 | Harness, Probe |
|
- | |||||
| 7 | 4158212 | Nut |
|
- | |||||
| 8 | 4359004 | Thermistor |
|
- | |||||
| 9 | 4358192 | Screw |
|
- | |||||
| 10 | 4344826 | Screw (Replaces: 4358489) |
|
$ 14.31 |
