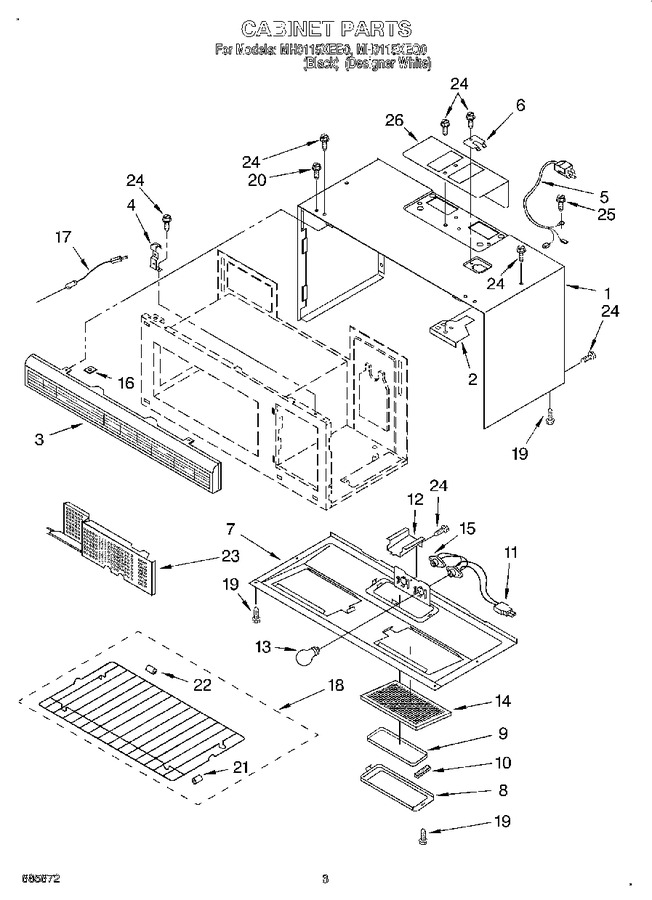

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4358925		Outer Case (white Model)		Appelez-nous	-
1	4358926		Outer Case (black Model)		Appelez-nous	-
2	4358928		Mounting Bracket		Appelez-nous	-
3	4358998		Grille Vent (black Model)		Appelez-nous	-
3	4358952		Grille Vent (white Model)		Appelez-nous	-
4	4358759		Bracket, Front		Appelez-nous	-
5	4358760		Power Cord		Appelez-nous	-
6	4358761		Cover, Power Cord		Appelez-nous	-
7	4358929		Base Plate (white Model)		Appelez-nous	-
7	4359366		Base Plate (black Model)		Appelez-nous	-
8	4358533		Cover, Glass (white Model)		Appelez-nous	-
8	4358765		Cover, Glass (black Model)		Appelez-nous	-
9	4358953		Glass, Lamp		Appelez-nous	-
10	4358767		Cushion, Glass		Appelez-nous	-
11	4358768		Lead Wire		Appelez-nous	-
12	4358769		Cover, Wire		Appelez-nous	-
13	8206232A		Oven Lamp   (Replaces: 4158432)			Immediately	$ 6.61
14	4358853		Air Filter			Immediately	$ 16.99
15	4358790		Lamp Holder		Appelez-nous	-
16	4358816		Bracket, Grille		Appelez-nous	-
17	4358430		Temperature Probe		Appelez-nous	-
18	4359242		Shelf Assembly		Appelez-nous	-
19	4358380		Screw (white Model)				$ 11.75
19	4358829		Screw (black Model)		Appelez-nous	-
20	4359009		Screw (white Model)		Appelez-nous	-
20	4358762		Screw (black Model)				$ 7.10
21	4358956		Bushing Shelf		Appelez-nous	-
22	4358957		Bushing Shelf		Appelez-nous	-
23	4358958		Bracket, Inlet		Appelez-nous	-
24	4358188		Screw		Appelez-nous	-
25	4344826		Screw   (Replaces: 4358489)				$ 14.31
26	4359377		Mount, Cabinet		Appelez-nous	-
