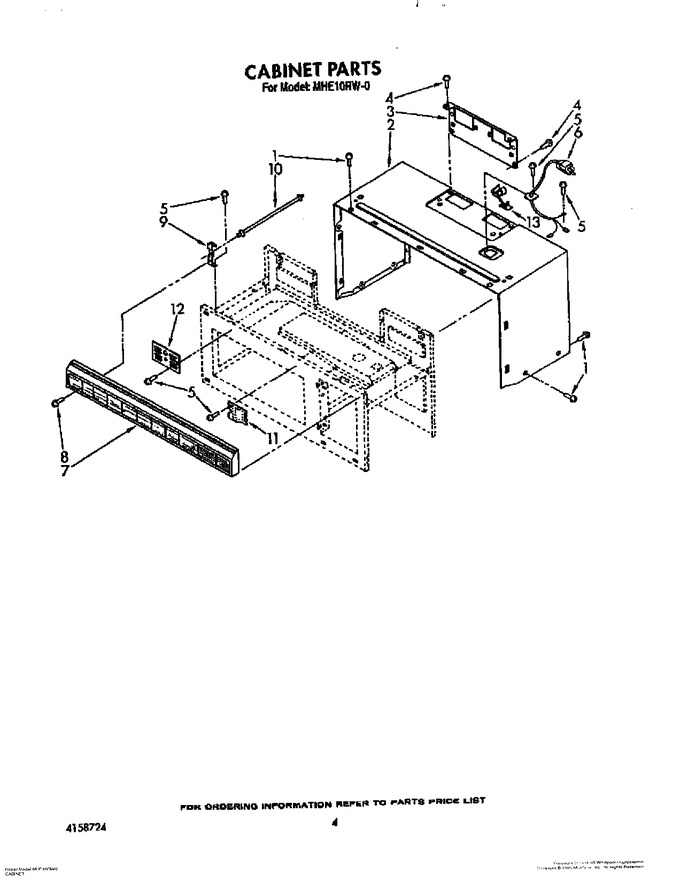

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4158084 | Screw (12) |
|
- | |||||
| 2 | 4158508 | Outer Case |
|
- | |||||
| 3 | 4158421 | Vent Fan Mounting Bracket |
|
- | |||||
| 4 | 4158353 | Screw (8) |
|
- | |||||
| 5 | 4158076 | Screw (6) |
|
- | |||||
| 6 | 4158672 | Power Cord Assy. |
|
- | |||||
| 7 | 4158509 | Vent Grille |
|
- | |||||
| 8 | 4158425 | Screw (3) |
|
- | |||||
| 9 | 4158426 | Front Bracket |
|
- | |||||
| 10 | 4158427 | Mounting Rod |
|
- | |||||
| 11 | 4158428 | Sealed Plate R.h. |
|
- | |||||
| 12 | 4158422 | Sealed Plate L.h. |
|
- | |||||
| 13 | 4158092 | Strain Relief |
|
- |
