SELECT A DIAGRAM
01 - Magnetron And Air Flow
02 - Installation
03 - Cabinet
04 - Door
05 - Wiring Harness, Lit/optional

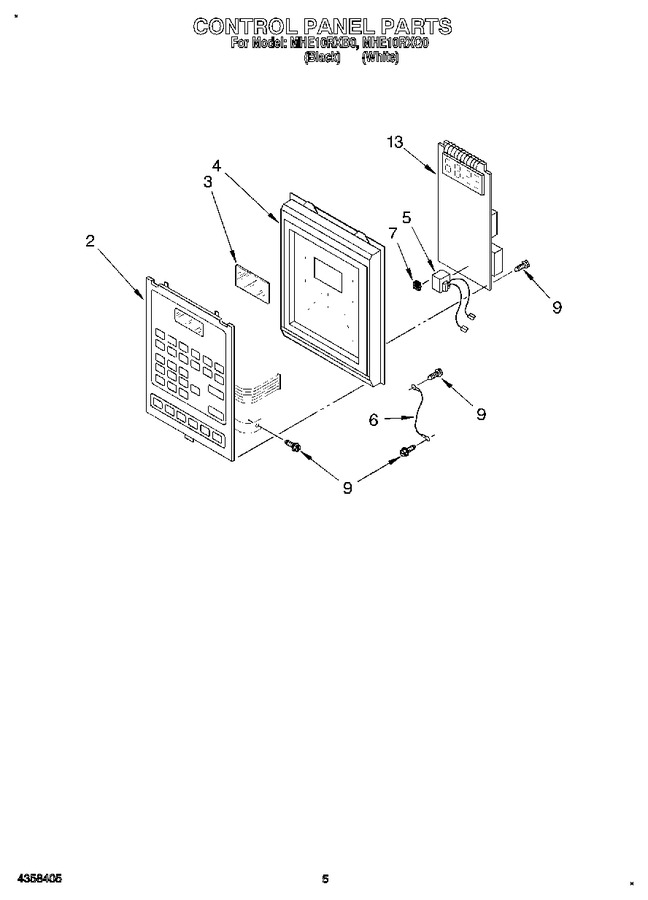

06 - Control Panel
07 - Cavity And Stirrer
08 - Ventilation
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 4358902 | Switch, Membrane (white Model) |
|
- | |||||
| 2 | 4358903 | Switch, Membrane (black Model) |
|
- | |||||
| 3 | 4158457 | Digitron Window |
|
- | |||||
| 4 | 4358138 | Control Panel (white Model) |
|
- | |||||
| 4 | 4358070 | Control Panel (black Model) |
|
- | |||||
| 5 | 4358073 | Transformer, Power |
|
- | |||||
| 6 | 4358187 | Wire, Ground |
|
- | |||||
| 7 | 4358232 | Digitron Cushion |
|
- | |||||
| 9 | 4358188 | Screw |
|
- | |||||
| 13 | 4358230 | Microcomputer |
|
- |
