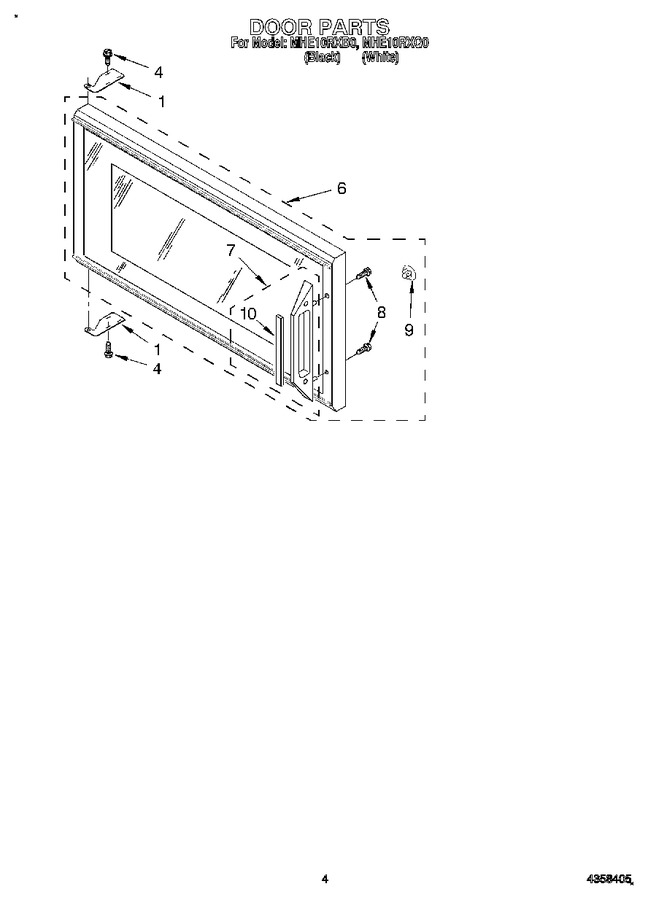

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4358066 | Hinge Plate |
|
- | |||||
| 4 | 4358067 | Tapping Screw |
|
- | |||||
| 6 | 4358244 | Complete Door (white Model) |
|
- | |||||
| 6 | 4358229 | Complete Door (black Model) |
|
- | |||||
| 7 | 4358068 | Handle (black Model) |
|
- | |||||
| 7 | 4358577 | Handle (white Model) |
|
- | |||||
| 8 | 4358192 | Screw, Tapping (2) |
|
- | |||||
| 9 | 4158487 | Plug, Button |
|
- | |||||
| 10 | 4358580 | Insert, Handle (white Model) |
|
- | |||||
| 10 | 4358069 | Insert, Handle (black Model) |
|
- |
