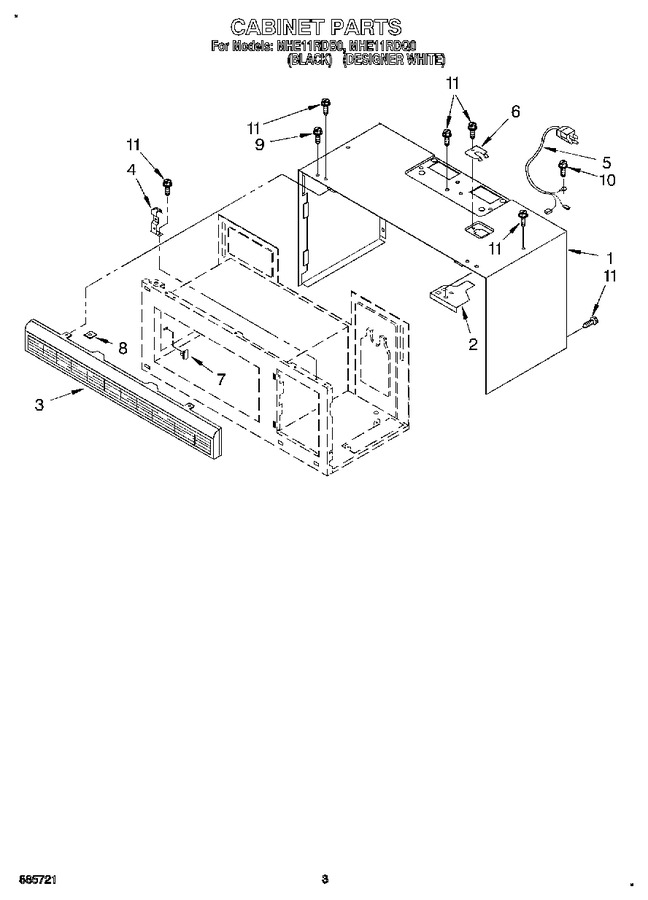

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4358925		Outer Case (white Model)		Appelez-nous	-
1	4358926		Outer Case (black Model)		Appelez-nous	-
2	4358928		Mounting Bracket		Appelez-nous	-
3	4359048		Grille Vent (white Model)		Appelez-nous	-
3	4359053		Grille Vent (black Model)		Appelez-nous	-
4	4358759		Bracket, Front		Appelez-nous	-
5	4358760		Power Cord		Appelez-nous	-
6	4358761		Cover, Power Cord		Appelez-nous	-
7	4358173		Plug, Cavity		Appelez-nous	-
8	4358816		Bracket, Grille		Appelez-nous	-
9	4358762		Screw (black Model)				$ 7.10
9	4359009		Screw (white Model)		Appelez-nous	-
10	4344826		Screw   (Replaces: 4358489)				$ 14.31
11	4358192		Screw		Appelez-nous	-
