Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4358925 Outer Case (white Model) Appelez-nous -
1 4358926 Outer Case (black Model) Appelez-nous -
2 4358928 Mounting Bracket Appelez-nous -
3 4359053 Grille Vent (black Model) Appelez-nous -
3 4359048 Grille Vent (white Model) Appelez-nous -
4 4358759 Bracket, Front Appelez-nous -
5 4359573 Power Cord Appelez-nous -
6 4358761 Cover, Power Cord Appelez-nous -
7 4358173 Plug, Cavity Appelez-nous -
8 4358816 Bracket, Grille Appelez-nous -
9 4359009 Screw (white Model) Appelez-nous -
9 4358762 Screw (black Model) Special Order $ 7.10

10 4344826 Screw   (Replaces: 4358489) Special Order $ 14.31

11 4358192 Screw Appelez-nous -
12 4359376 Cover Appelez-nous -
13 4359377 Plate, Mount Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

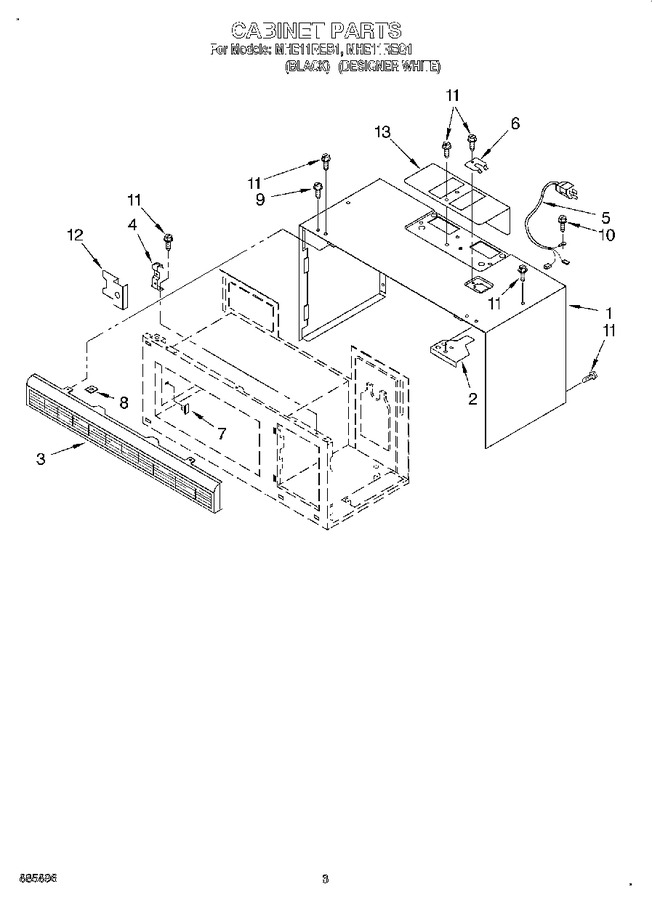

Diagram for MHE11REB1
