SELECT A DIAGRAM
01 - Control Panel, Literature
02 - Door

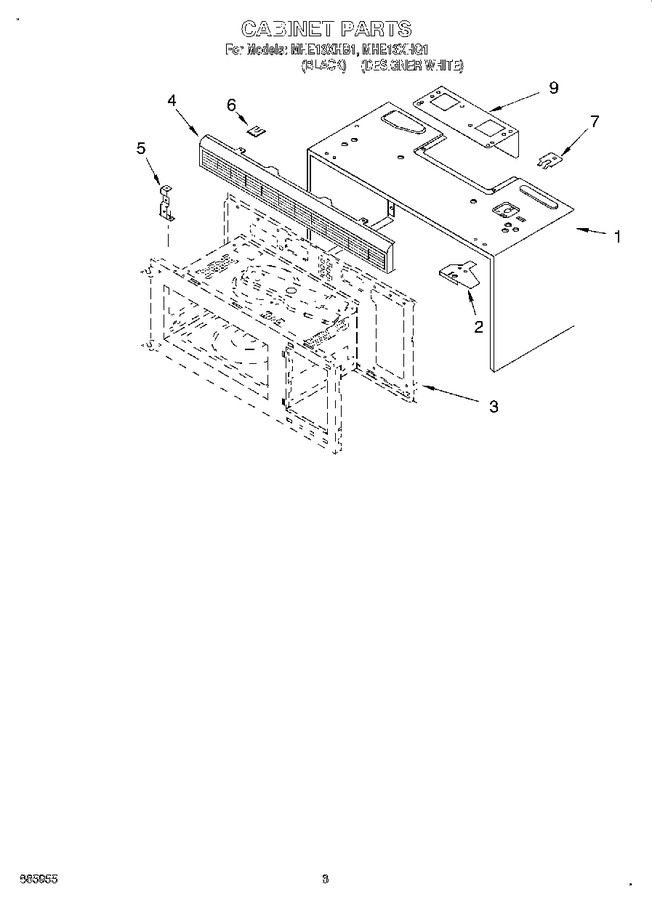

03 - Cabinet
04 - Magnetron And Air Flow
05 - Interior
06 - Latch Board
07 - Ventilation
08 - Installation
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4359488 | Outer Case (black Model) |
|
- | |||||
| 1 | 4359487 | Outer Case (white Model) |
|
- | |||||
| 1 | 4358381 | Outer Case (screw) |
|
- | |||||
| 2 | 4358928 | Mounting Bracket |
|
- | |||||
| 2 | 4358192 | Screw |
|
- | |||||
| 4 | 4359490 | Grille Vent (black Model) |
|
- | |||||
| 4 | 4359489 | Grille Vent (white Model) |
|
- | |||||
| 4 | 4358762 | Grille Vent (screw) |
|
$ 7.10 | |||||
| 5 | 4358759 | Bracket, Front |
|
- | |||||
| 5 | 4358192 | Screw |
|
- | |||||
| 6 | 4358816 | Bracket, Grille |
|
- | |||||
| 7 | 4359616 | Cover, Power Cord |
|
- | |||||
| 7 | 4358192 | Screw |
|
- | |||||
| 9 | 4359377 | Plate, Mount |
|
- | |||||
| 9 | 4358381 | Screw |
|
- |
