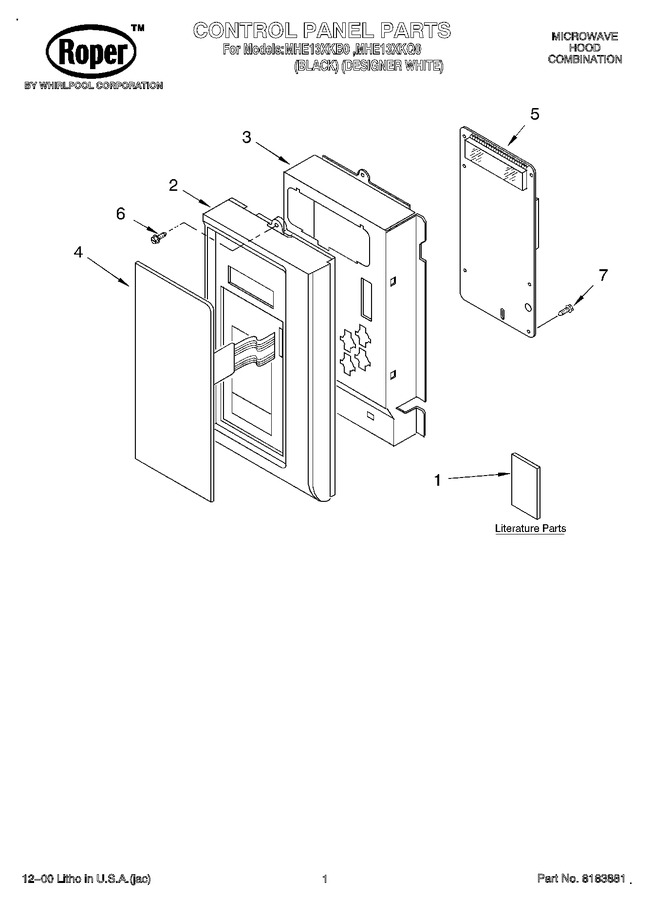

01 - Control Panel, Literature
02 - Door
03 - Cabinet
04 - Magnetron And Air Flow
05 - Interior
06 - Latch Board
07 - Ventilation
08 - Installation
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT8183776 | Literature Parts (guide, U&c) |
|
- | |||||
| 1 | LIT4359455 | Literature Parts (instructions, Installation) |
|
- | |||||
| 1 | LIT4359670 | Literature Parts (tech Sheet) |
|
- | |||||
| 1 | LIT4359931 | Literature Parts (guide, Cooking) |
|
- | |||||
| 2 | 4359480 | Control Panel (black Model) |
|
- | |||||
| 2 | 4359479 | Control Panel (white Model) |
|
- | |||||
| 3 | 4359481 | Bracket, Control |
|
- | |||||
| 4 | 8183792 | Key Membrane (black) |
|
- | |||||
| 4 | 8183791 | Key Membrane (white) |
|
- | |||||
| 5 | 8172054 | Microcomputer |
|
- | |||||
| 6 | 4358762 | Screw |
|
$ 7.10 | |||||
| 7 | 4358380 | Screw |
|
$ 11.75 |
