SELECT A DIAGRAM

01 - Control Panel, Literature


02 - Door


03 - Cabinet

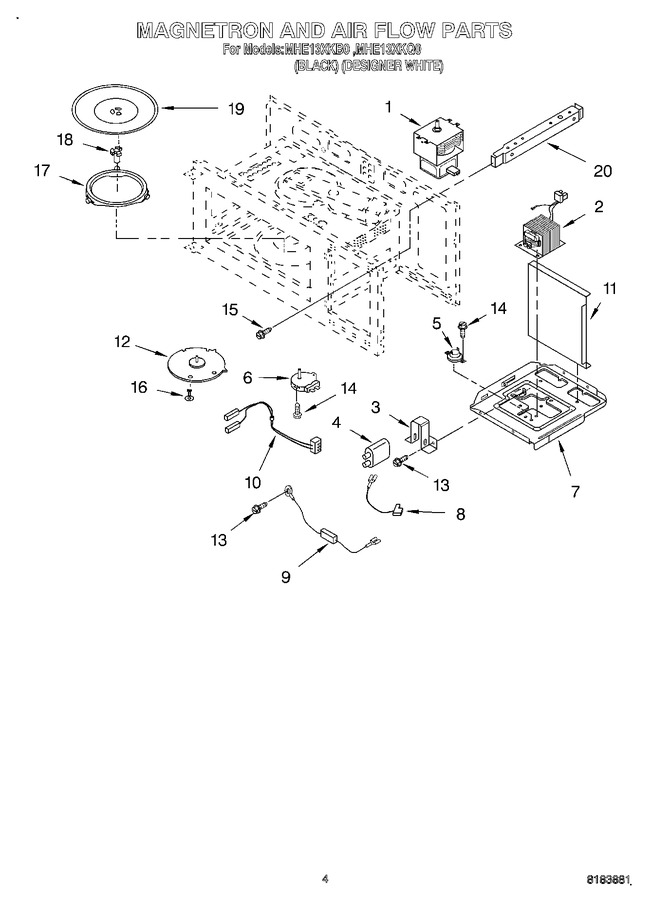

04 - Magnetron And Air Flow


05 - Interior


06 - Latch Board


07 - Ventilation


08 - Installation


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4359617		Magnetron		Appelez-nous	-
2	8183883		H.v. Transformer		Appelez-nous	-
3	4359497		Bracket, H.v.		Appelez-nous	-
4	8183884		Capacitor, H.v.		Appelez-nous	-
5	W10864742		Base Thermostat   (Replaces: 4358775)				$ 76.01
6	4359499		Motor, Turntable		Appelez-nous	-
7	4359500		Plate		Appelez-nous	-
8	4359501		H.v. Cable		Appelez-nous	-
9	WP8205489		H.v. Diode Cable   (Replaces: 8171879)				$ 58.19
10	4359503		Lead Wire		Appelez-nous	-
11	4359504		Guide		Appelez-nous	-
12	4359688		Cover		Appelez-nous	-
13	4344826		Screw   (Replaces: 4358489)				$ 14.31
14	4358188		Screw		Appelez-nous	-
15	4358192		Screw		Appelez-nous	-
16	WP4359508		Rivet   (Replaces: 4359508)				$ 8.28
17	4359509		Rotating Ring		Appelez-nous	-
18	4359618		Turntable Shaft		Appelez-nous	-
19	WP8172138		Glass Tray   (Replaces: 8172138)				$ 87.23
20	4158491		Installation Hardware		Appelez-nous	-
20	4359510		Plate		Appelez-nous	-
20	WP482338		Sealer, Silastic (3 Oz.)   (Replaces: 482338)			Immediately	$ 57.16

    View Diagram in Separate Window       Print Part List
