01 - Body/cavity/elements
02 - Control Panel/door Assembly
03 - Internal Control/latch Asy/base
SELECT A DIAGRAM
New Model Search:

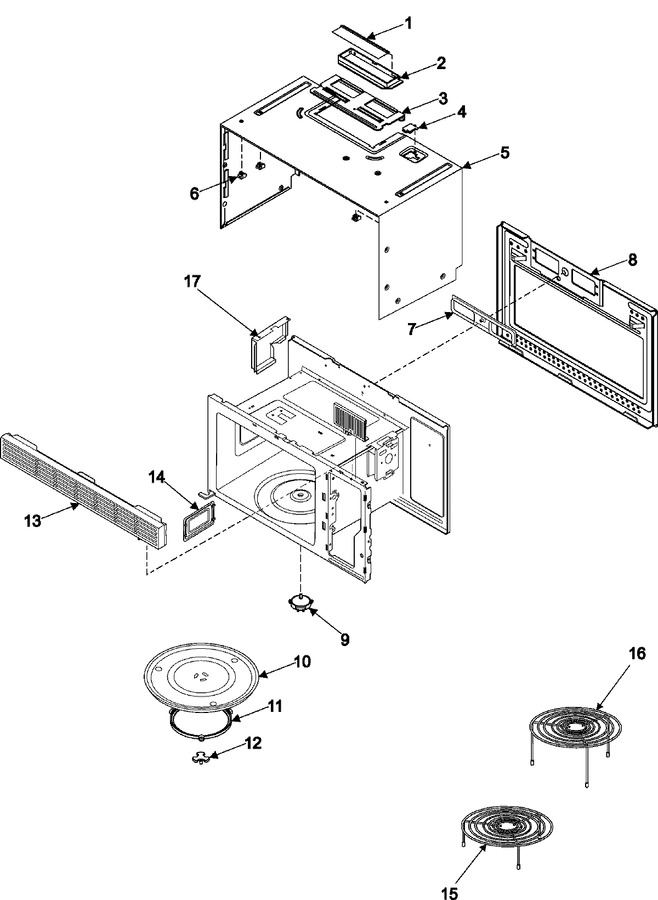

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DE71-60051A | Cover-damper |
|
$ 23.29 | |||||
| 2 | DE72-40022A | Damper-main |
|
Immediately | $ 12.07 | ||||
| 3 | DE61-50545A | Bracket-v/t Motor |
|
$ 17.58 | |||||
| 4 | DE61-50507A | Bracket-power Cord |
|
- | |||||
| 5 | DE70-00130D | Panel-outer |
|
- | |||||
| 6 | DE92-90508A | Assy-holder Nut |
|
Immediately | $ 17.58 | ||||
| 7 | DE71-00109A | Cover-duct |
|
- | |||||
| 8 | DE61-00080B | Bracket-mount |
|
- | |||||
| 9 | 555555 | Motor, Drive (Replaces: DE31-10172A) |
|
$ 151.94 | |||||
| 10 | DE74-20002B | Tray-cooking |
|
$ 110.25 | |||||
| 11 | DE92-90189S | Assy-guide Roller |
|
$ 43.88 | |||||
| 12 | DE67-60081A | Coupler |
|
$ 17.58 | |||||
| 13 | DE74-00017B | Grille |
|
- | |||||
| 14 | DE71-60164F | Cover-mgt |
|
- | |||||
| 15 | DE97-00136B | Assy-wire Rack |
|
$ 62.83 | |||||
| 16 | DE97-00136E | Assy-wire Rack |
|
$ 76.95 | |||||
| 17 | DE92-90440A | Assy-guide Wave |
|
- |
