SELECT A DIAGRAM

01 - Door


02 - Controller


03 - Oven Cavity


04 - Latch Board

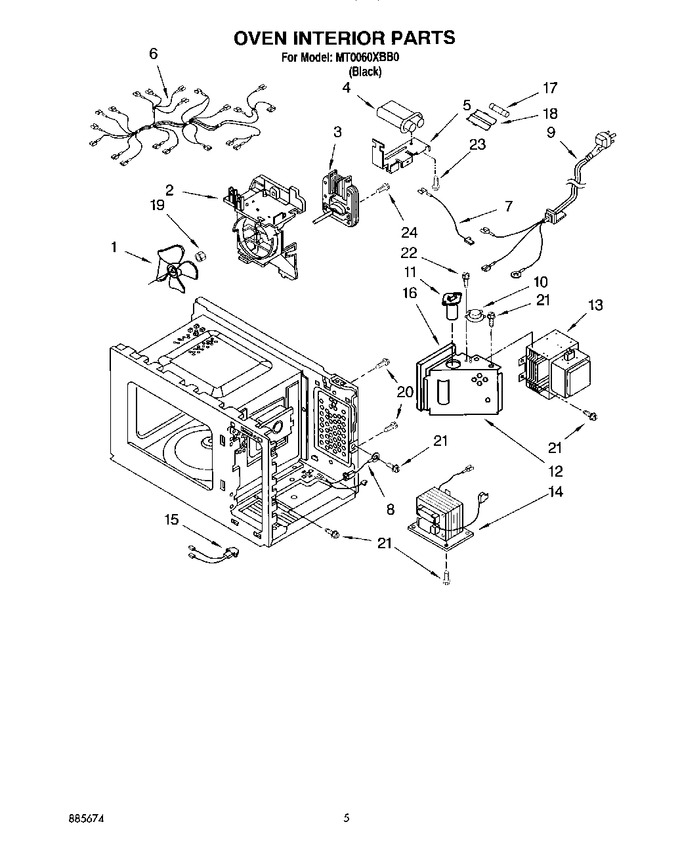

05 - Oven Interior, Literature


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4158758		Propeller		Appelez-nous	-
2	4359158		Guide, Suction		Appelez-nous	-
3	4358643		Motor, Fan		Appelez-nous	-
4	4358695		H.v. Capacitor		Appelez-nous	-
5	4359161		H.v.c. Bracket		Appelez-nous	-
6	4358899		Leadwire Assembly		Appelez-nous	-
7	4158827		H.v. Cable Ass`y		Appelez-nous	-
8	4158897		H.v. Diode Cable		Appelez-nous	-
9	4358653		Cord, Power		Appelez-nous	-
10	4358698		Thermostat		Appelez-nous	-
11	4358651		Lamp, Baseless		Appelez-nous	-
12	4358652		Duct, Air		Appelez-nous	-
13	4158798		Magnetron		Appelez-nous	-
14	4358699		H.v. Transformer		Appelez-nous	-
15	4358700		Leadwire Ass`y		Appelez-nous	-
16	4358657		Cushion		Appelez-nous	-
17	4358263		Fuse		Appelez-nous	-
18	4358659		Cap, Fuse		Appelez-nous	-
19	4358475		Nut (2)		Appelez-nous	-
20	4358051		Screw (2)		Appelez-nous	-
21	4344826		Screw (13)   (Replaces: 4358489)				$ 14.31
22	4358376		Screw		Appelez-nous	-
23	4358381		Screw		Appelez-nous	-
24	4358190		Screw (2)		Appelez-nous	-
	LIT4358587		Use & Care Guide		Appelez-nous	-
	LIT4378047		Accessory Order Card		Appelez-nous	-
	LIT4358583		Tech Sheet		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
