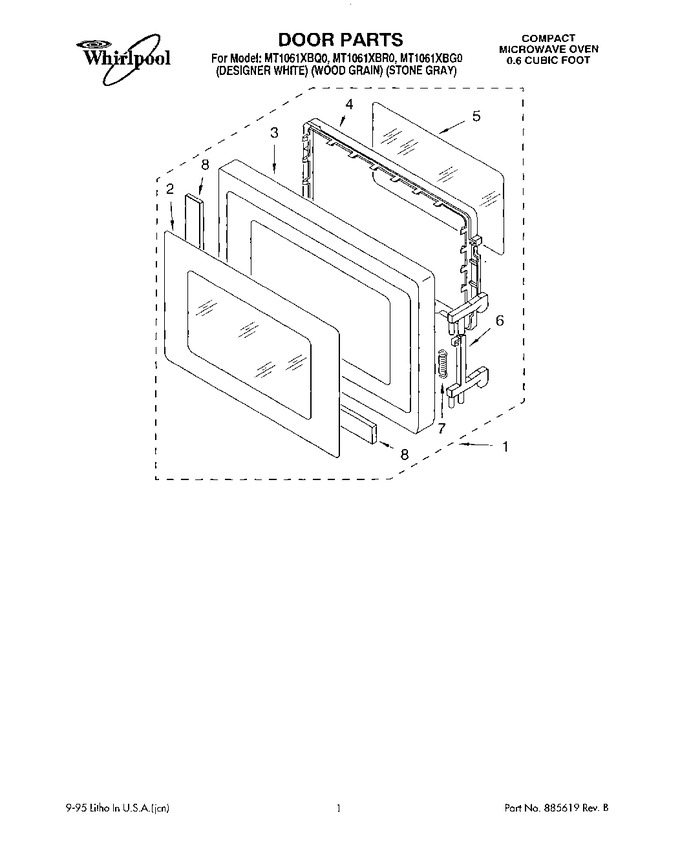

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4358661		Door Assembly (white Model)		Appelez-nous	-
1	4358701		Door Assembly (wood Grain & Gray Model)		Appelez-nous	-
2	4358662		Front Screen (white Model)		Appelez-nous	-
2	4358702		Front Screen (wood Grain & Gray Model)		Appelez-nous	-
3	4358676		Door Frame Assembly (white Model)		Appelez-nous	-
3	4358703		Door Frame Assembly (wood Grain & Gray Model)		Appelez-nous	-
4	4358677		Choke Cover		Appelez-nous	-
5	4358678		Tape, Seal		Appelez-nous	-
6	4358606		Latch		Appelez-nous	-
7	4358607		Spring, Latch		Appelez-nous	-
8	4358608		Tape, Toyo		Appelez-nous	-
