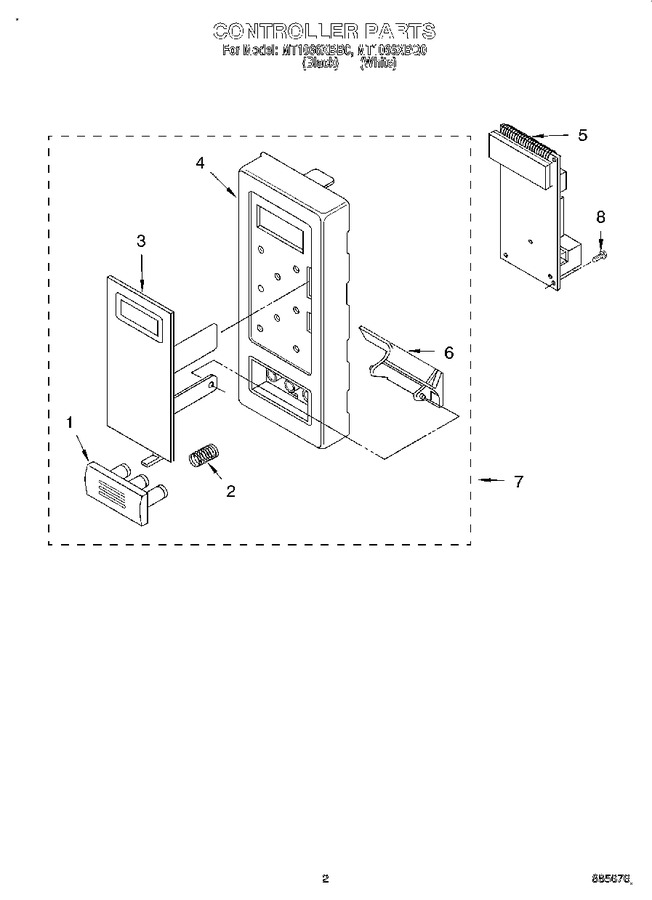

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4358670 | Release Button (black Model) |
|
- | |||||
| 1 | 4358610 | Button, Release (white Model) |
|
- | |||||
| 2 | 4158178 | Spring |
|
$ 5.83 | |||||
| 3 | 4358912 | Key Membrane (black Model) |
|
- | |||||
| 3 | 4358906 | Key Membrane (white Model) |
|
- | |||||
| 4 | 4358706 | Control Panel (black Model) |
|
- | |||||
| 4 | 4358681 | Control Panel (white Model) |
|
- | |||||
| 5 | 4358907 | P.c.b Sub Assy. |
|
- | |||||
| 6 | 4358615 | Lever, Release |
|
- | |||||
| 7 | 4358913 | Controller Sub Assembly (black Model) |
|
- | |||||
| 7 | 4358909 | Controller Sub Assembly (white Model) |
|
- | |||||
| 8 | 4358451 | Screw |
|
- |
