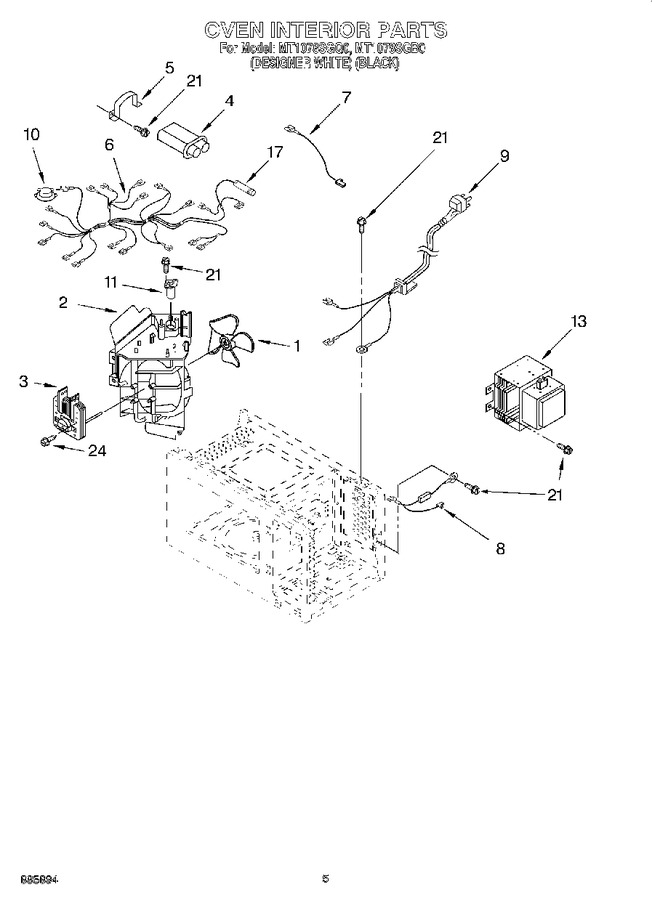

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4358379 | Propeller |
|
- | |||||
| 2 | 4359727 | Guide, Suction |
|
- | |||||
| 3 | 4359728 | Motor, Fan |
|
- | |||||
| 4 | 4359734 | H.v. Capacitor |
|
- | |||||
| 5 | 4359735 | H.v.c Bracket |
|
- | |||||
| 6 | 4359729 | Leadwire Assembly |
|
- | |||||
| 7 | 4359736 | H.v. Cable Ass`y |
|
- | |||||
| 8 | WP8205489 | H.v. Diode Cable (Replaces: 4359502) |
|
$ 58.19 | |||||
| 9 | 4359730 | Power Cord |
|
- | |||||
| 10 | 4359164 | Thermostat |
|
- | |||||
| 11 | 4359741 | Lamp, Baseless |
|
$ 37.00 | |||||
| 13 | 4359731 | Magnetron |
|
- | |||||
| 17 | 4358704 | Fuse |
|
- | |||||
| 21 | 4344826 | Screw (Replaces: 4358489) |
|
$ 14.31 | |||||
| 24 | 4358190 | Screw |
|
- | |||||
| LIT4359602 | Use & Care Guide |
|
- | ||||||
| LIT4359671 | Tech Sheet |
|
- | ||||||
| LIT4359669 | Cook Guide Label |
|
- |
