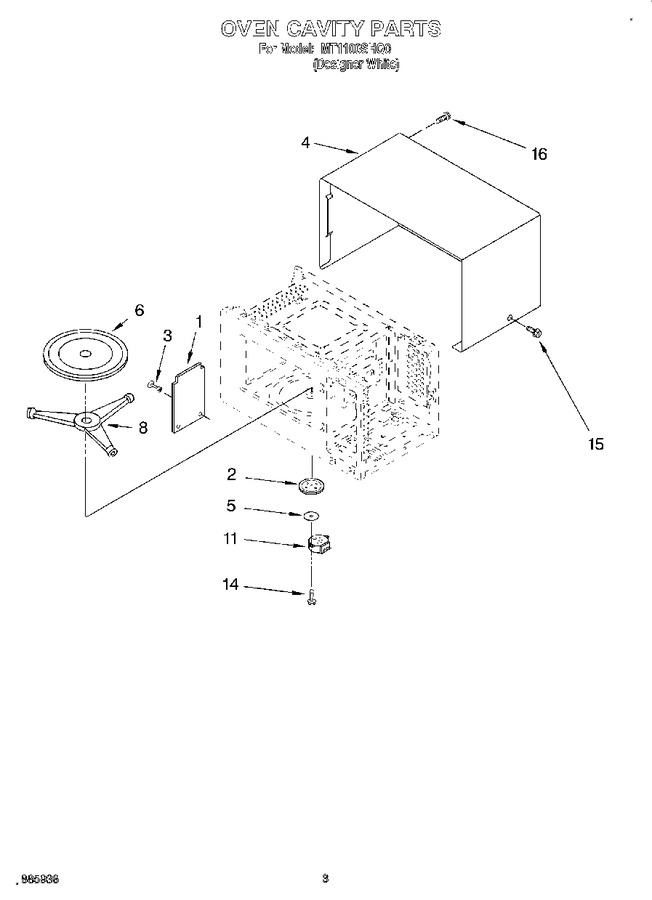

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4359825 | Canopy |
|
- | |||||
| 2 | 8171804 | Mount |
|
- | |||||
| 3 | WP4359508 | Rivet (Replaces: 4359508) |
|
$ 8.28 | |||||
| 4 | 8171803 | Outer Case |
|
- | |||||
| 5 | 8171805 | Seal, Water |
|
- | |||||
| 6 | 8171806 | Tray, Glass |
|
- | |||||
| 8 | 4359782 | Support, Turntable |
|
- | |||||
| 11 | 4359885 | Motor, Synchronous |
|
- | |||||
| 14 | 4358188 | Screw |
|
- | |||||
| 15 | W11245710 | Screw (Replaces: 4358362) |
|
Immediately | $ 12.65 | ||||
| 16 | 4358192 | Screw |
|
- |
