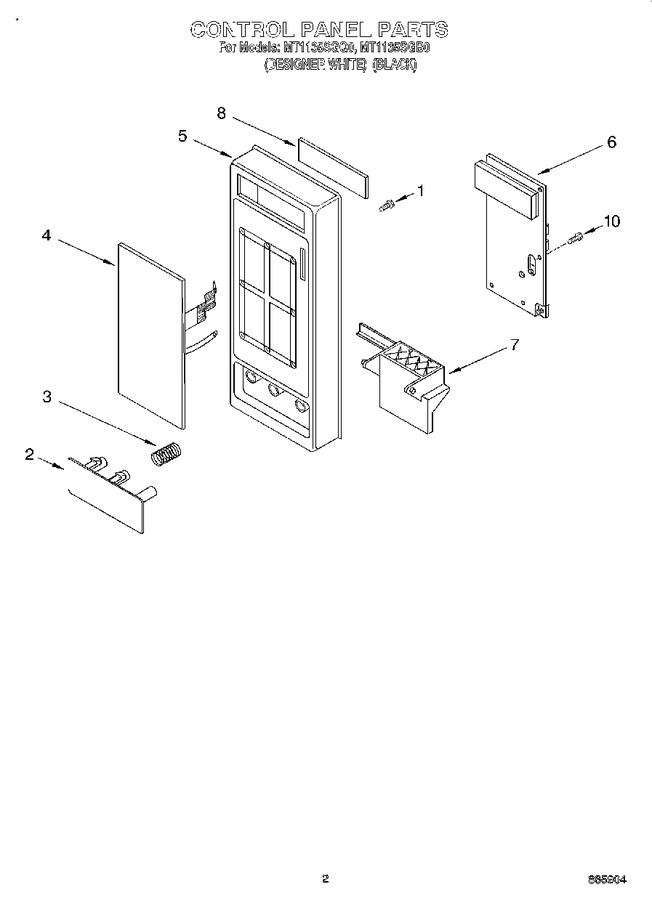

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4358381		Screw		Appelez-nous	-
2	4359768		Release Button (black Model)		Appelez-nous	-
2	4359767		Release Button (white Model)		Appelez-nous	-
3	4158178		Spring, Button				$ 5.83
4	4359803		Key Membrane (black)		Appelez-nous	-
4	4359807		Key Membrane (white)		Appelez-nous	-
5	4359774		Control Panel (black (also, Order Key Membrane))		Appelez-nous	-
5	4359773		Control Panel (white)		Appelez-nous	-
6	4359745		P.c.b Sub Assembly		Appelez-nous	-
7	4359718		Lever, Release		Appelez-nous	-
8	4359720		Window		Appelez-nous	-
10	4358883		Screw		Appelez-nous	-
