01 - Door Parts
02 - Control Panel Parts

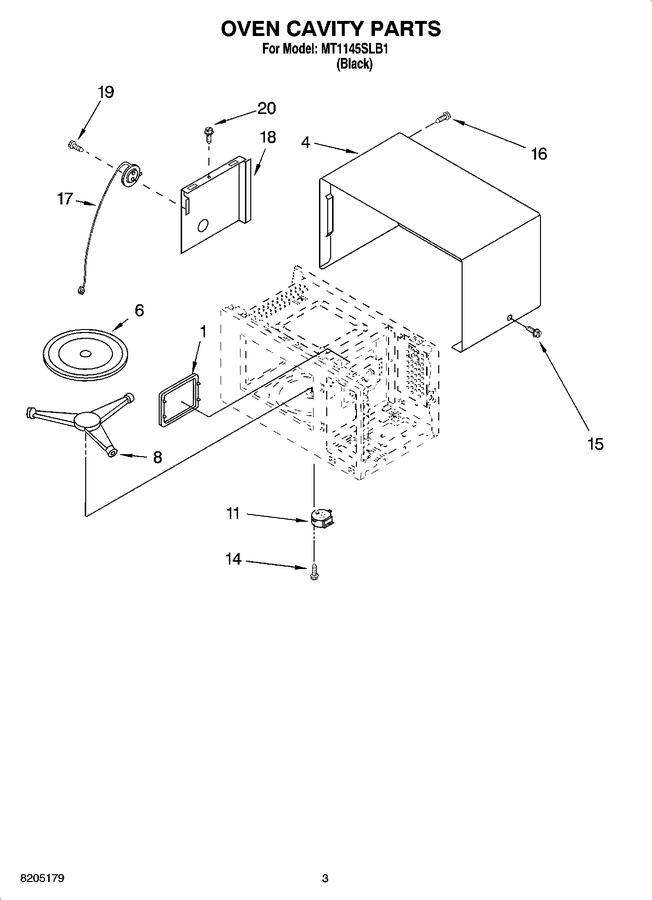

03 - Oven Cavity Parts
04 - Latch Board Parts
05 - Oven Interior Parts
06 - Base Plate Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8171935 | Canopy |
|
- | |||||
| 4 | 8183611 | Outer Case |
|
- | |||||
| 6 | WPW10267856 | Tray, Glass (Replaces: 4359780) |
|
$ 63.44 | |||||
| 8 | 4359884 | Turntable Support |
|
- | |||||
| 11 | WPW10159107 | Motor, Synchronous (Replaces: 8183504) |
|
$ 160.07 | |||||
| 14 | 4358188 | Screw |
|
- | |||||
| 15 | 4358829 | Screw |
|
- | |||||
| 16 | 8171862 | Screw |
|
- | |||||
| 17 | 8184814 | Sensor |
|
- | |||||
| 18 | 8183515 | Duct-sensor |
|
- | |||||
| 19 | 4358450 | Screw |
|
- | |||||
| 20 | 4358192 | Screw |
|
- |
