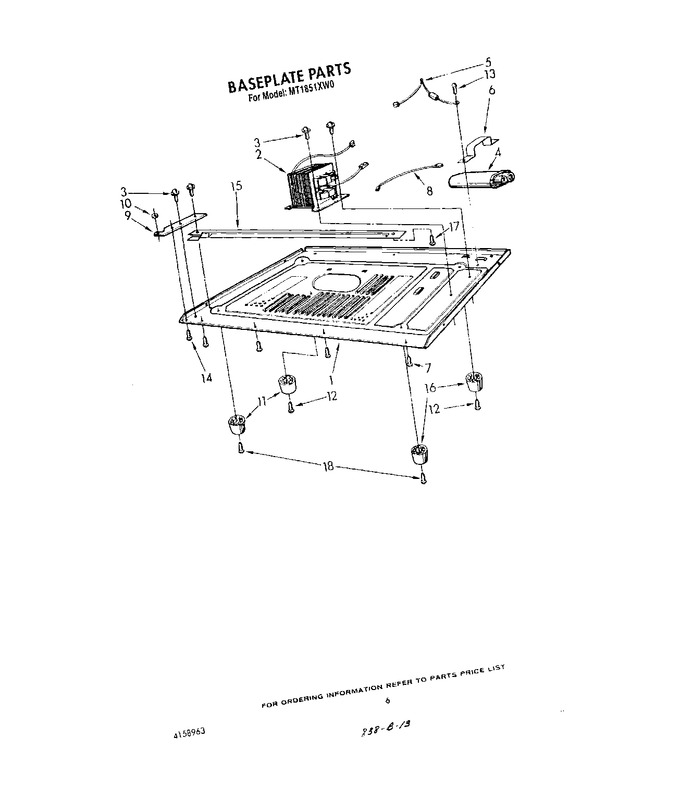

05 - Baseplate


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4158619		Baseplate		Appelez-nous	-
2	4158802		Transformer		Appelez-nous	-
3	WP3400094		Screw No.5x12mm (4)   (Replaces: 4158747)				$ 7.14
4	4158507		Capacitor		Appelez-nous	-
5	4158804		H.v. Diode Cable		Appelez-nous	-
6	4158799		Bracket, Capacitor		Appelez-nous	-
7	4158076		Screw No.4x10mm (8)		Appelez-nous	-
8	4158805		H.v. Cable		Appelez-nous	-
9	4158784		Hinge Plate, Lower		Appelez-nous	-
10	4158419		Washer, Hinge		Appelez-nous	-
11	4158780		Leg, Left		Appelez-nous	-
12	4158472		Screw No.4x16mm (4)		Appelez-nous	-
13	4158791		Screw		Appelez-nous	-
14	4158194		Screw, Machine (1)		Appelez-nous	-
15	4158785		Bracket, Hinge		Appelez-nous	-
16	4158781		Leg, Right		Appelez-nous	-
17	4158071		Screw (2)		Appelez-nous	-
18	4158190		Screw		Appelez-nous	-
