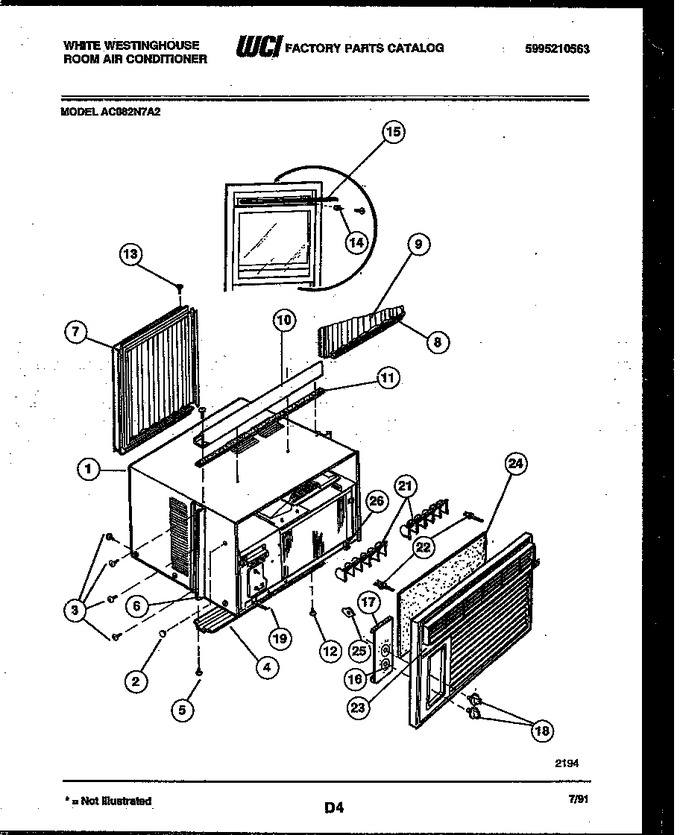

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303270060		Wrapper		Appelez-nous	-
2	5303271346		Screw-front		Appelez-nous	-
3	3015312		Screw		Appelez-nous	-
4	5303270072		Rail Bottom		Appelez-nous	-
5	3001806		Screw Rail		Appelez-nous	-
6	5303270073		Retainer		Appelez-nous	-
7	5303270061		Frame Extension Lh		Appelez-nous	-
8	5303270062		Frame Extension Rh		Appelez-nous	-
9	5303270075		Accordian Closure		Appelez-nous	-
10	5303270064		Rail Top		Appelez-nous	-
11	08016226		Seal		Appelez-nous	-
12	08016080		Screw-leveling		Appelez-nous	-
13	5308002974		Screw Frame To Sash		Appelez-nous	-
14	5303211056		Angle Bracket Window		Appelez-nous	-
15	3002603		Seal Window Sash		Appelez-nous	-
16	5303209696		Dial Plate		Appelez-nous	-
17	5303001861		Seal		Appelez-nous	-
18	5300331902		Knob		Appelez-nous	-
19	5303270058		Service Cord		Appelez-nous	-
21	08014228		Louver		Appelez-nous	-
22	08013699		Handle		Appelez-nous	-
23	5303272858		Insert		Appelez-nous	-
24	080009018		Filter		Appelez-nous	-
25	3203495		Clip-filter		Appelez-nous	-
26	5303001784		Clip-front To Base		Appelez-nous	-
19A	5303209697		Front Complete (non-illustrated)		Appelez-nous	-
22A	08007482		Seal-mullion (non-illustrated)		Appelez-nous	-
2A	08010928		Nut-screw (non-illustrated)		Appelez-nous	-
