01 - Door, Literature

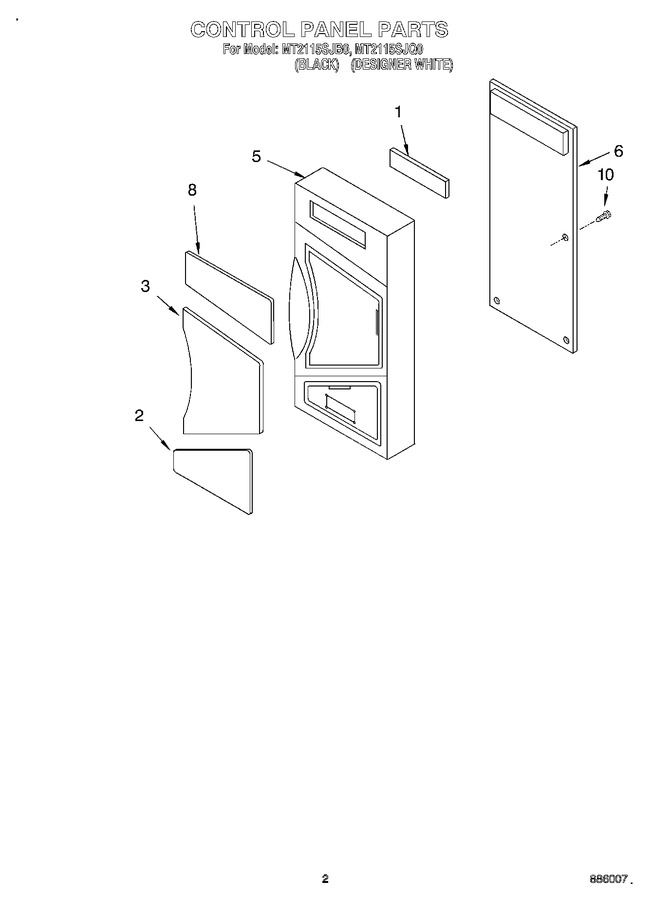

02 - Control Panel
03 - Oven Cavity
04 - Latch Board
05 - Oven Interior
06 - Base Plate
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4359720 | Window |
|
- | |||||
| 2 | 8183501 | Switch, Membrane (white) |
|
- | |||||
| 2 | 8183499 | Switch, Membrane (black) |
|
- | |||||
| 3 | 8183512 | Switch, Membrane (white) |
|
- | |||||
| 3 | 8183511 | Switch, Membrane (black) |
|
- | |||||
| 5 | 8183502 | Control Panel (black) |
|
- | |||||
| 5 | 8183503 | Control Panel (white) |
|
- | |||||
| 6 | 8183513 | Microcomputer |
|
- | |||||
| 8 | 8171982 | Window |
|
- | |||||
| 10 | 4358883 | Screw |
|
- |
