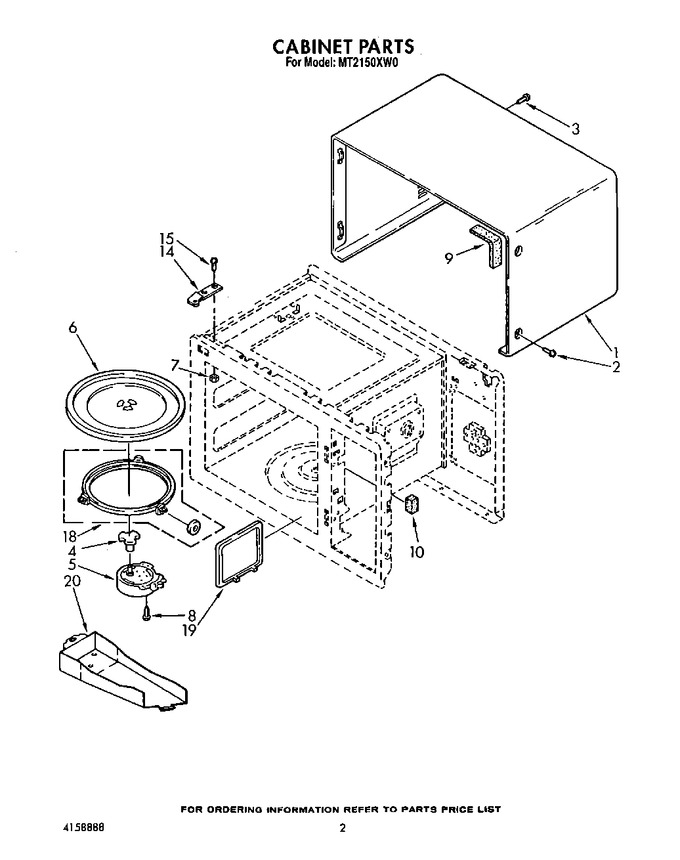

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4158872 | Cabinet Wrapper |
|
- | |||||
| 2 | 4158084 | Screw No.4x12mm (4) |
|
- | |||||
| 3 | 4158071 | Screw No.4x10mm (4) |
|
- | |||||
| 4 | 4158786 | Shaft, Turntable |
|
- | |||||
| 5 | 4158900 | Motor, Turntable |
|
- | |||||
| 6 | 4158813 | Tray, Glass |
|
- | |||||
| 7 | 4158053 | Nut (2) |
|
- | |||||
| 8 | 4158079 | Screw |
|
$ 6.69 | |||||
| 9 | 4158903 | Seal, Cabinet |
|
- | |||||
| 10 | 4158904 | Seal, Cavity |
|
- | |||||
| 14 | 4158902 | Hinge, Upper |
|
- | |||||
| 15 | 4158192 | Screw (2) |
|
- | |||||
| 18 | 4158899 | Base, Turntable |
|
- | |||||
| 19 | 4158901 | Cap, Wave Guide |
|
- | |||||
| 20 | 4158895 | Cover, Turntable Motor |
|
- |
