02 - Cabinet


03 - Control Panel And Door

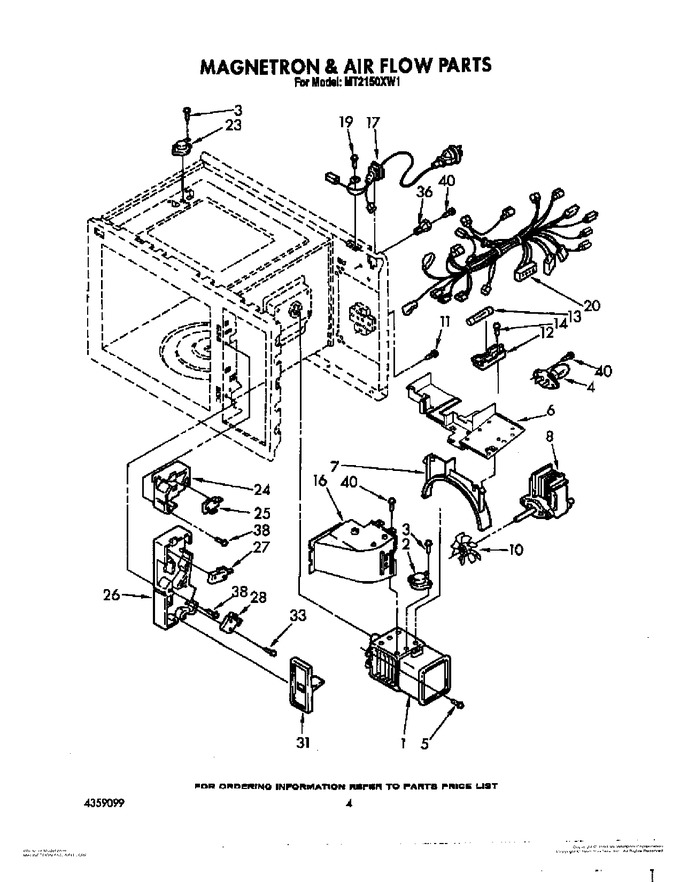

04 - Magnetron And Air Flow, Optional


05 - Baseplate


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4158798		Magnetron		Appelez-nous	-
2	4158539		Thermostat, Magnetron		Appelez-nous	-
3	4158082		Screw No.3x8mm (4)		Appelez-nous	-
4	4158586		Baseless Lamp		Appelez-nous	-
5	WP3400094		Screw (4)   (Replaces: 4158747)				$ 7.14
6	4158889		Guide, Air		Appelez-nous	-
7	4158890		Bracket, Fan		Appelez-nous	-
8	4158891		Motor, Fan		Appelez-nous	-
10	4158758		Fan		Appelez-nous	-
11	4339398		Screw		Appelez-nous	-
12	4158581		Holder, Fuse		Appelez-nous	-
13	4158378		Fuse		Appelez-nous	-
14	4158072		Screw No.4x8mm (1)		Appelez-nous	-
16	4158887		Air Duct		Appelez-nous	-
17	4158832		Cord, Power		Appelez-nous	-
19	4158071		Screw No.4 X 10 Mm		Appelez-nous	-
20	4358084		Wiring Harness		Appelez-nous	-
23	4158795		Thermostat, Oven		Appelez-nous	-
24	4158840		Latch, Upper		Appelez-nous	-
25	4392027		Micro Switch (primary)   (Replaces: 4158195)				$ 138.41
26	4158839		Latch, Lower		Appelez-nous	-
27	4392027		Micro Switch, Monitor   (Replaces: 4158650)				$ 138.41
28	4158651		Micro Switch, Secondary		Appelez-nous	-
31	4158155		Rod, Release		Appelez-nous	-
33	4158187		Screw		Appelez-nous	-
36	4339376		Spacer		Appelez-nous	-
38	4158307		Screw		Appelez-nous	-
40	4158190		Screw		Appelez-nous	-
	LIT4158709		Guide, Use And Care		Appelez-nous	-
	LIT4358099		Repair Parts List		Appelez-nous	-
	LIT4158711		Auto Set Chart		Appelez-nous	-
	LIT4158715		Tech Sheet		Appelez-nous	-
	LIT4158707		Auto Set Guide		Appelez-nous	-
	LIT4158713		Cook Book		Appelez-nous	-
	LIT4158705		Defrost Guide		Appelez-nous	-
