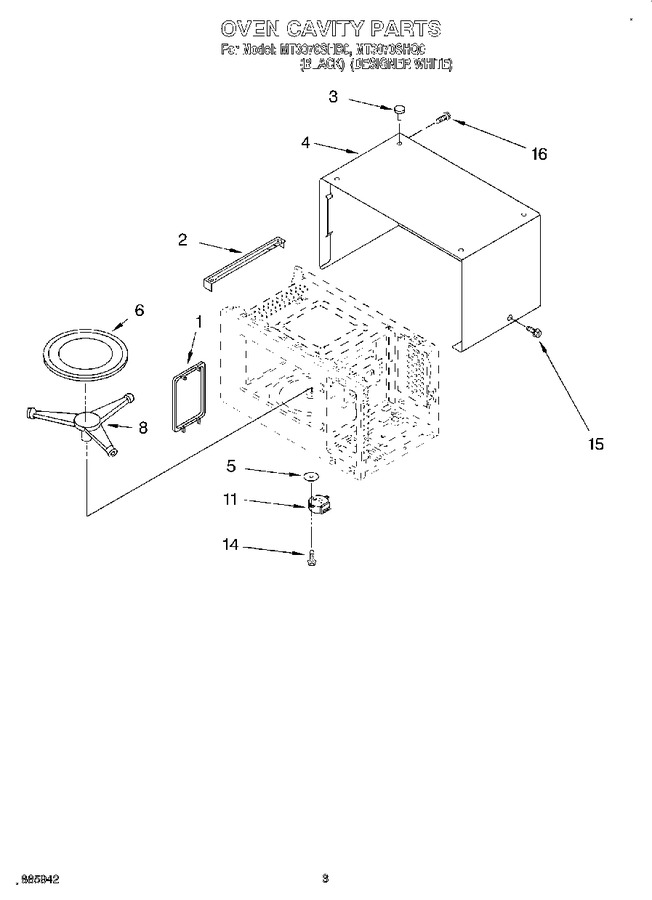

03 - Oven Cavity
04 - Latch Board
05 - Oven Interior
06 - Base Plate
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8171935 | Canopy |
|
- | |||||
| 2 | 4359945 | Bracket, Utc |
|
- | |||||
| 3 | 4158748 | Cap, Mount (white) |
|
- | |||||
| 3 | 4358857 | Cap, Mount (black) |
|
$ 6.11 | |||||
| 4 | 4359740 | Outer Case (black Model) |
|
- | |||||
| 4 | 4359739 | Outer Case (white Model) |
|
- | |||||
| 5 | 8171805 | Seal, Water |
|
- | |||||
| 6 | 4359722 | Tray, Glass |
|
- | |||||
| 8 | 4359723 | Turntable Support |
|
- | |||||
| 11 | 8171936 | Motor, Synchronous |
|
- | |||||
| 14 | 4358188 | Screw |
|
- | |||||
| 15 | 8171876 | Screw (white) |
|
- | |||||
| 15 | 8171877 | Screw (black) |
|
- | |||||
| 16 | 8171862 | Screw |
|
- |
