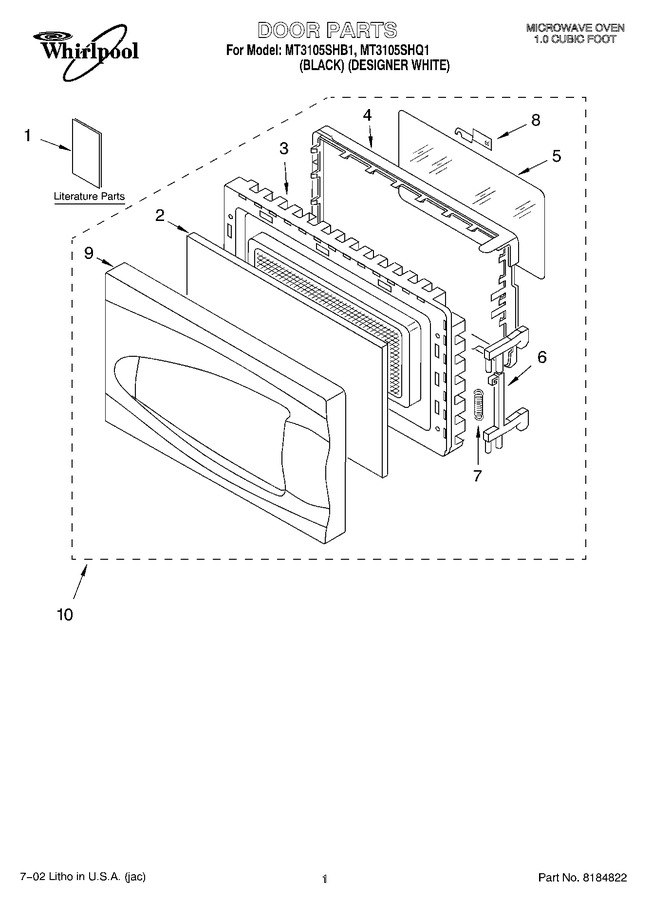

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Door, Literature
02 - Control Panel
03 - Oven Cavity
04 - Latch Board
05 - Oven Interior
06 - Base Plate
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT8171820 | Literature Parts (guide, U & C) |
|
- | |||||
| 1 | LIT8184823 | Literature Parts (cook Guide Label) |
|
- | |||||
| 1 | LIT8171833 | Literature Partstech Sheet (english) |
|
- | |||||
| 1 | LIT8171834 | Literature Partstech Sheet (spanish) |
|
- | |||||
| 2 | 8171969 | Front Screen |
|
- | |||||
| 3 | 8171970 | Door Frame Assembly |
|
- | |||||
| 4 | 8171795 | Choke Cover |
|
- | |||||
| 5 | 8171796 | Tape, Seal |
|
- | |||||
| 6 | 8171850 | Latch |
|
- | |||||
| 7 | 8171918 | Spring, Latch |
|
$ 51.20 | |||||
| 8 | 8171798 | Cap |
|
- | |||||
| 9 | 8171972 | Panel, Door (black) |
|
- | |||||
| 9 | 8171971 | Panel, Door (white) |
|
- | |||||
| 10 | 8171967 | Door Assembly (white) |
|
- | |||||
| 10 | 8171968 | Door Assembly (black) |
|
- |
